IV - 32

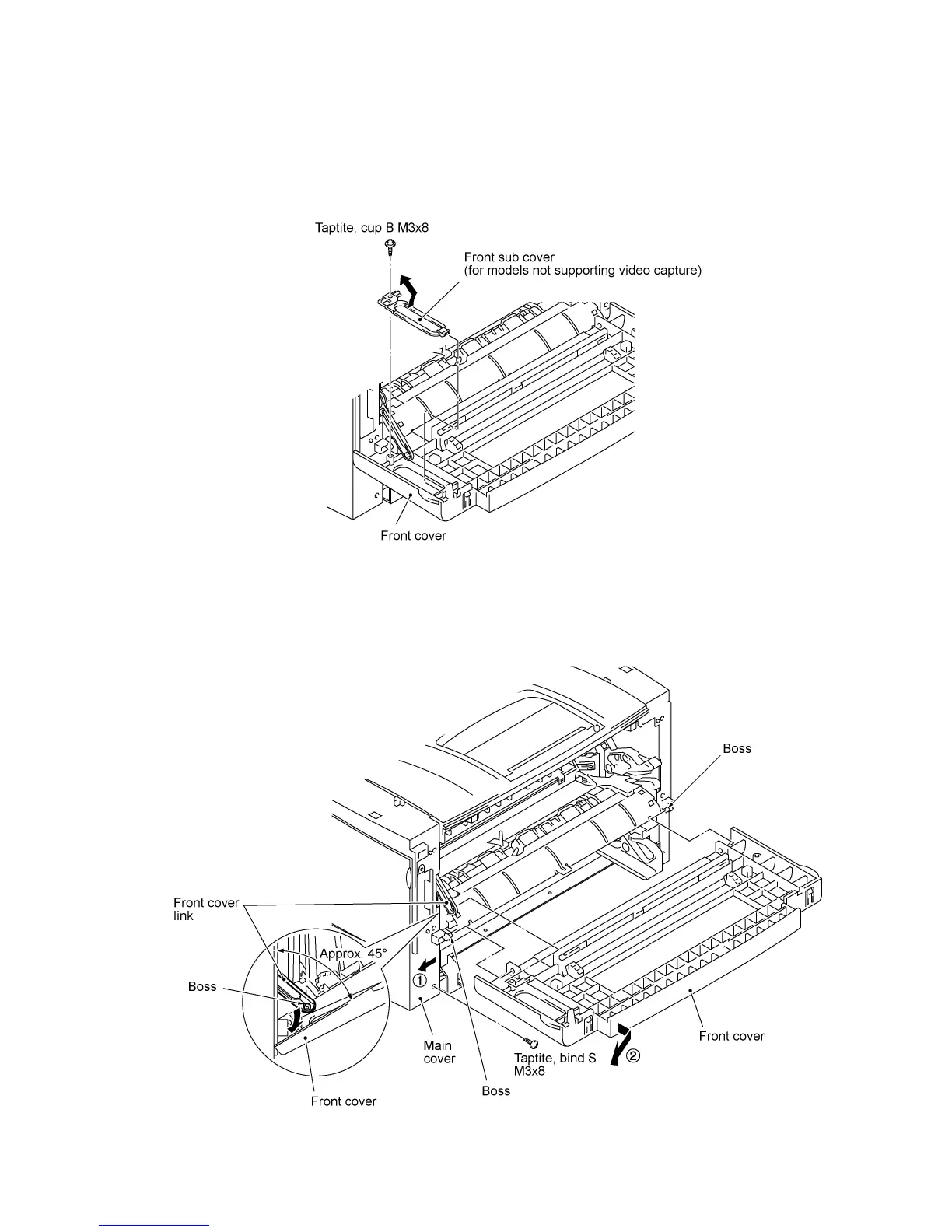

1.13 Front Cover
Front Sub Cover (for models not supporting video capture)
(1) For models not supporting video capture:
Remove the screw and take off the front sub cover from the front cover.
(2) Remove the screw from the left bottom of the front side of the main cover.
(3) Hold the front cover at an angle of 45° and pull the front cover link to the left to release it from
the front cover.
(4) Pull the bottom left front corner of the main cover to the left (in the direction of arrow ) and
release the front cover from the boss provided on the main cover (arrow ).
To Next Page
