IV - 29
Reassembling Notes

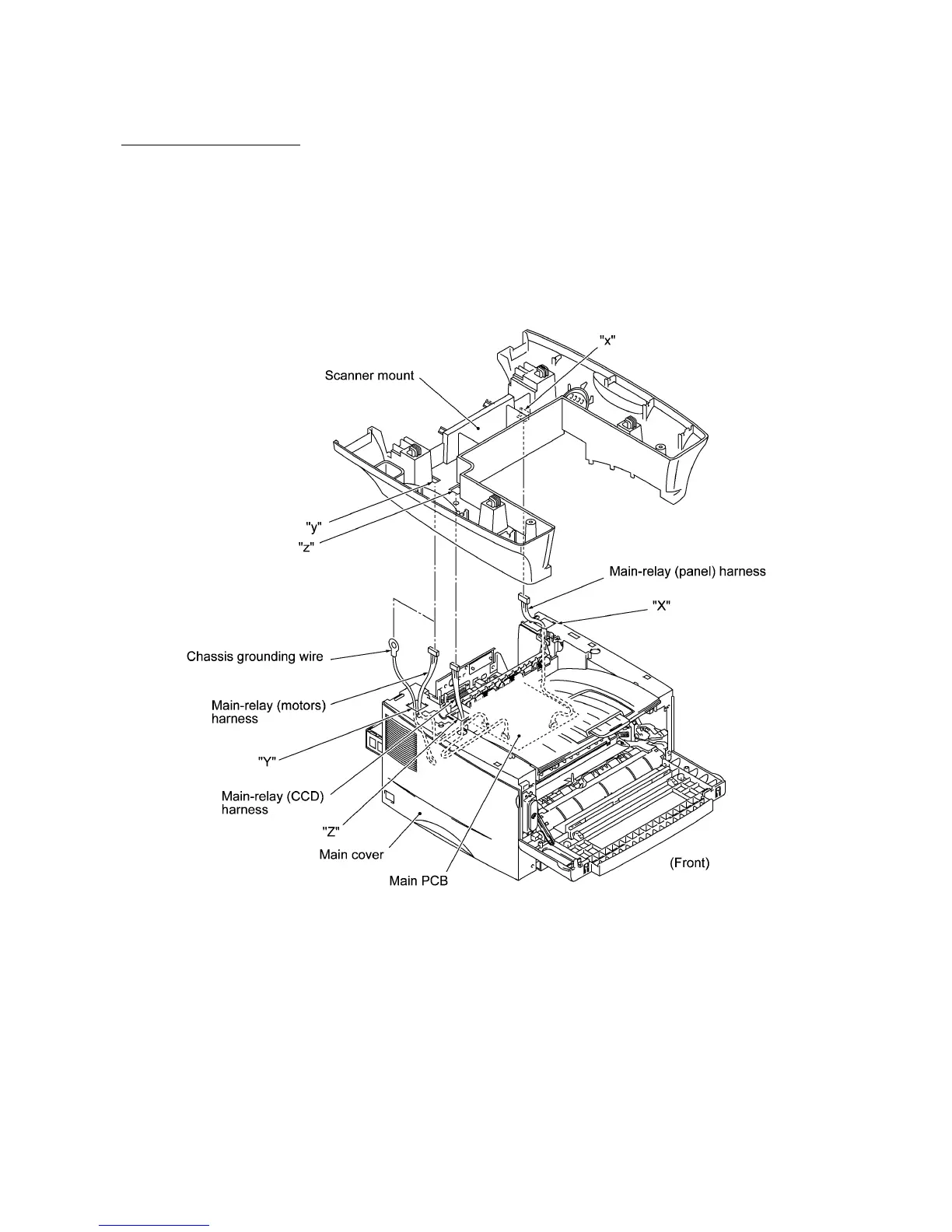

• When setting the scanner mount back into place:
- at the right-hand side, raise the main-relay (panel) harness coming through the main cover up
and through cutout "x" provided in the scanner mount.
- at the left-hand side, pull up the main-relay (motors) harness and chassis grounding wire and
raise them up and through square cutout "y" provided in the scanner mount. Also pull up the
main-relay (CCD) harness and raise it up and through round cutout "z."
To Next Page
