Brother MFC9700 - Page 74

IV - 28

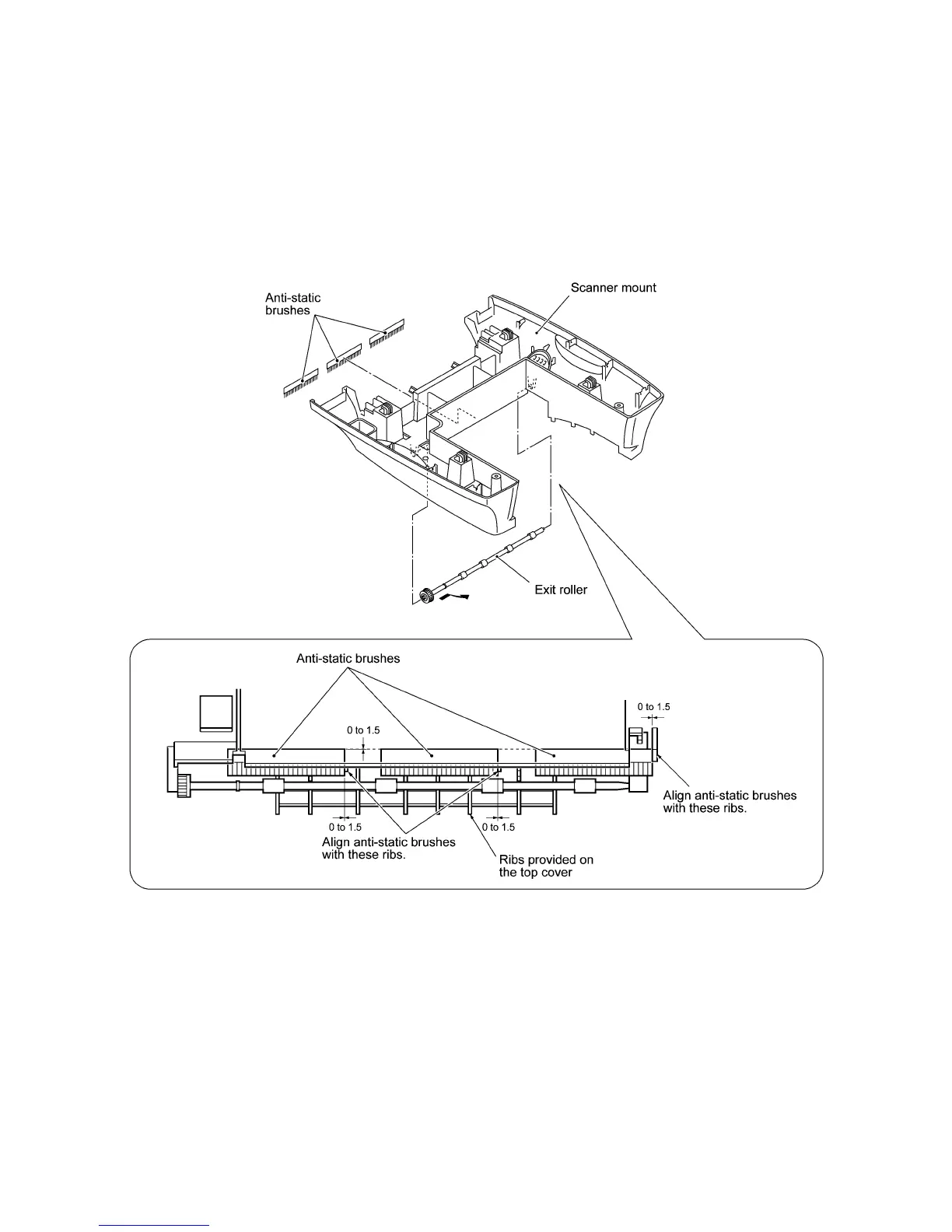

(5) Turn the scanner mount upside down.
(6) Peel off anti-static brushes.
NOTE: Once removed, they will become unusable and new parts will have to be put back in.
(7) As shown below, warp the gear-equipped end of the exit roller and remove it.
