IV - 17

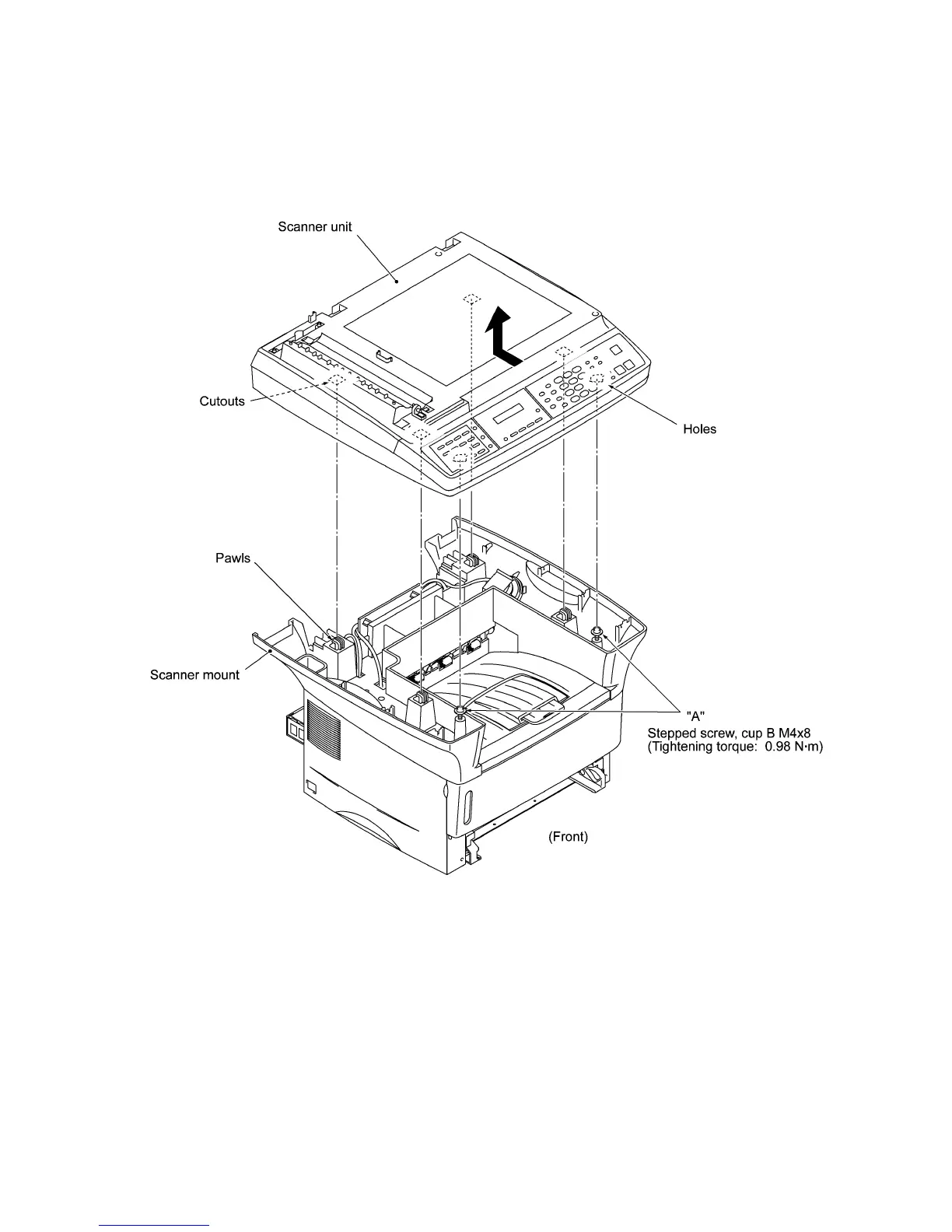

(2) Slide the scanner unit (with the control panel ASSY) to the rear by approx. 5 mm and then lift it
up. (For the disassembly procedure of the scanner unit, refer to page IV-19.)
