IV - 49

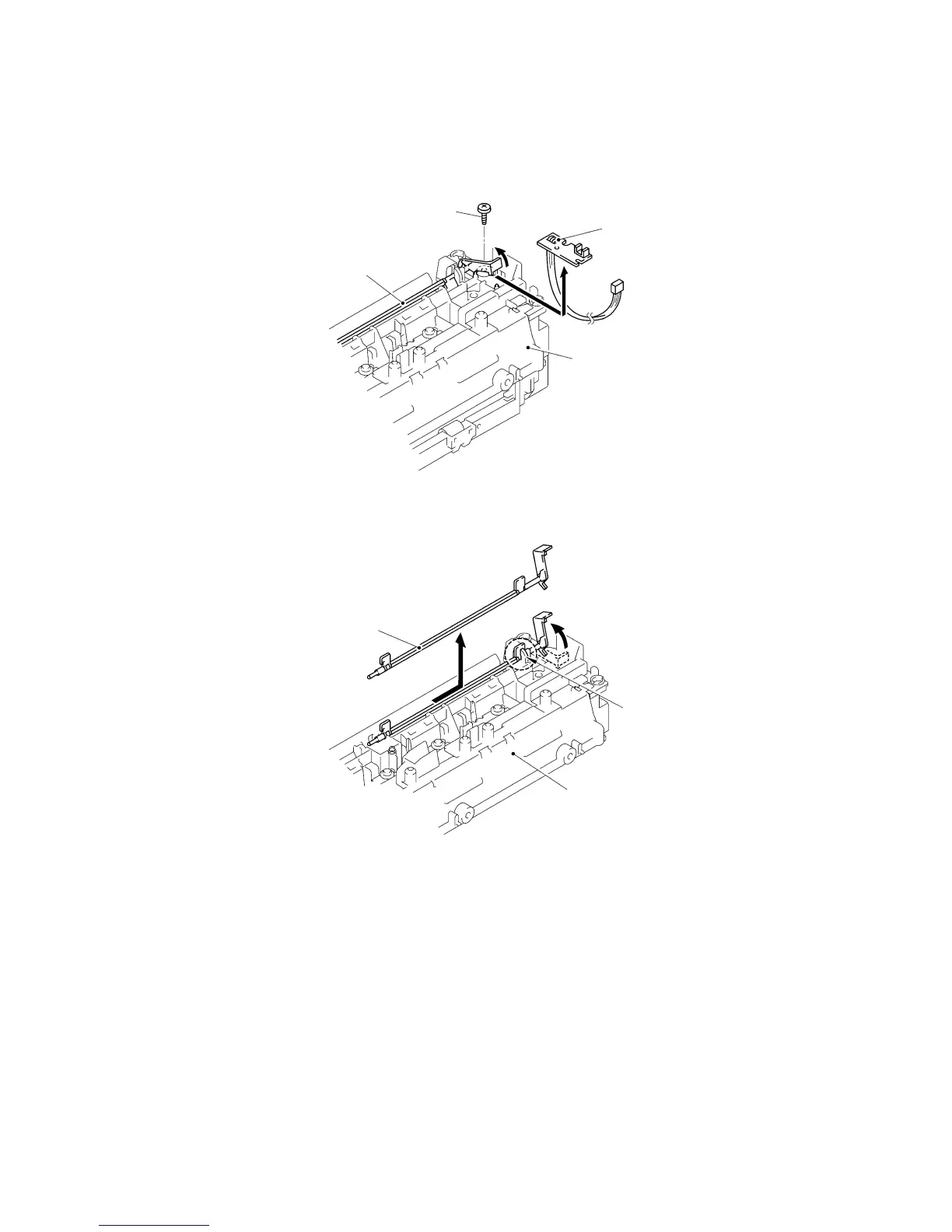

(22) From the upper FU frame, remove the screw, slightly lift up the shutter of the ejection actuator
3, and remove the jam sensor PCB.
(23) Turn the ejection actuator 3, move it to the right, and lift it up and out of the support.
Jam sensor PCB
Upper FU frame
Screw, bind B tite 3x10
Ejection actuator 3
Upper FU frame
Support
Ejection actuator 3
