IV - 52

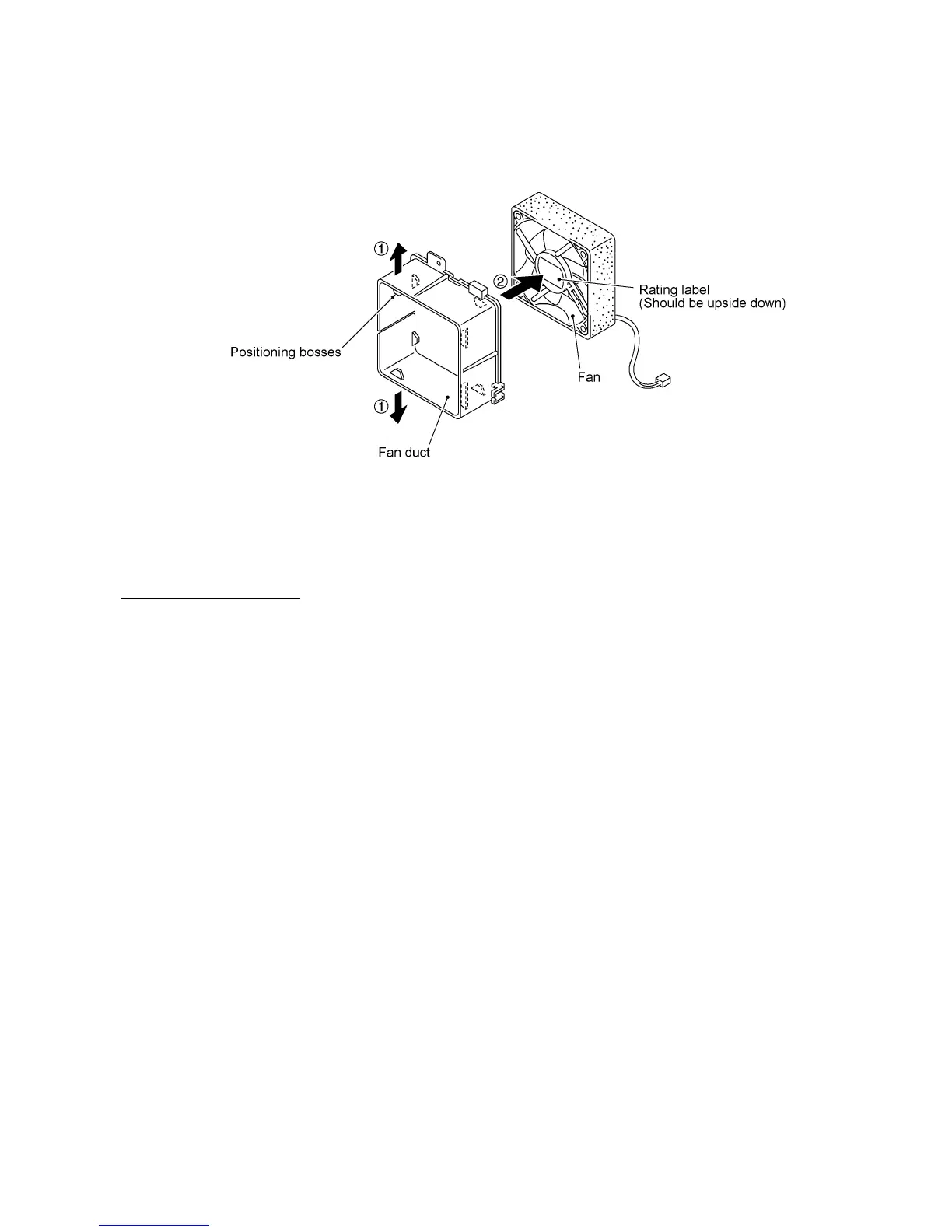

(3) As shown below, pull the fan duct outwards and take out the fan.


 Reassembling Notes
• Put the fan back into place so that the rating label faces outwards and upside down.
• Route the heater wires through the latch of the fan duct as shown on the previous page.
