28 Sync Pre-Installation
Wood Floor

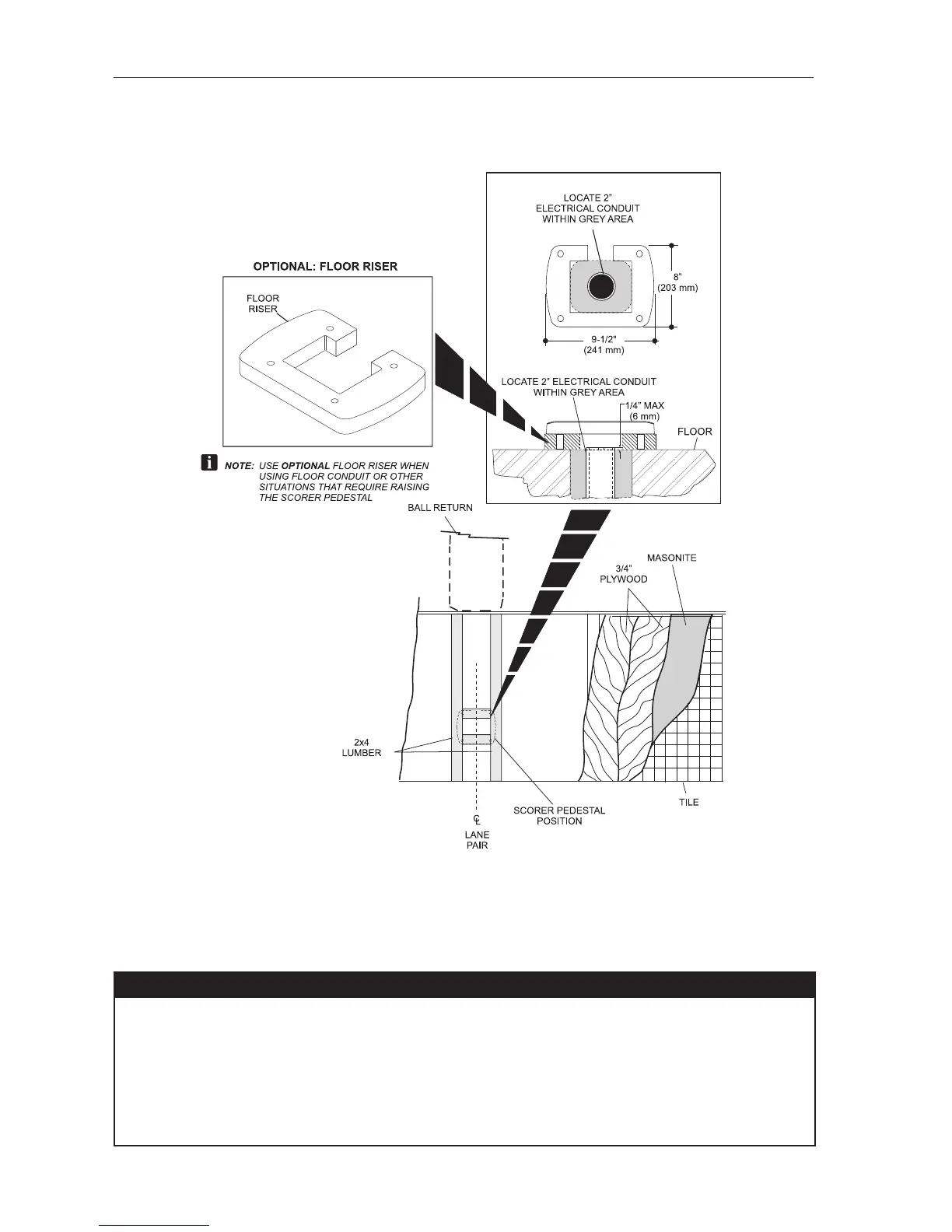

INSTALLATION INFORMATION
CUSTOMER’S RESPONSIBILITY: BUILD RACEWAYS USING 2 X 4 LUMBER ON THE EXISTING FLOOR. COVER WITH
TWO LAYERS OF 3/4” PLYWOOD, ONE LAYER OF MASONITE AND ONE LAYER OF TILE. IT IS NECESSARY TO CUT
OUT A PORTION OF THE APPROACH HEADER TO ALLOW THE CABLES TO BE ROUTED UNDER THE APPROACH.
REFER TO DIMENSIONS ABOVE FOR PLACEMENT OF 2 X 4 LUMBER.
THE REMAINING 2 X 4S MAY BE POSITIONED IN ANY MANNER THAT PROPERLY SUPPORTS THE FLOOR. ONE
SUGGESTION IS TO PUT THE LUMBER ON 16” (406 MM) CENTERS.
