Brunswick Sync - Wide Screen LED Overhead Video Display Support Specifications

68 Sync Pre-Installation

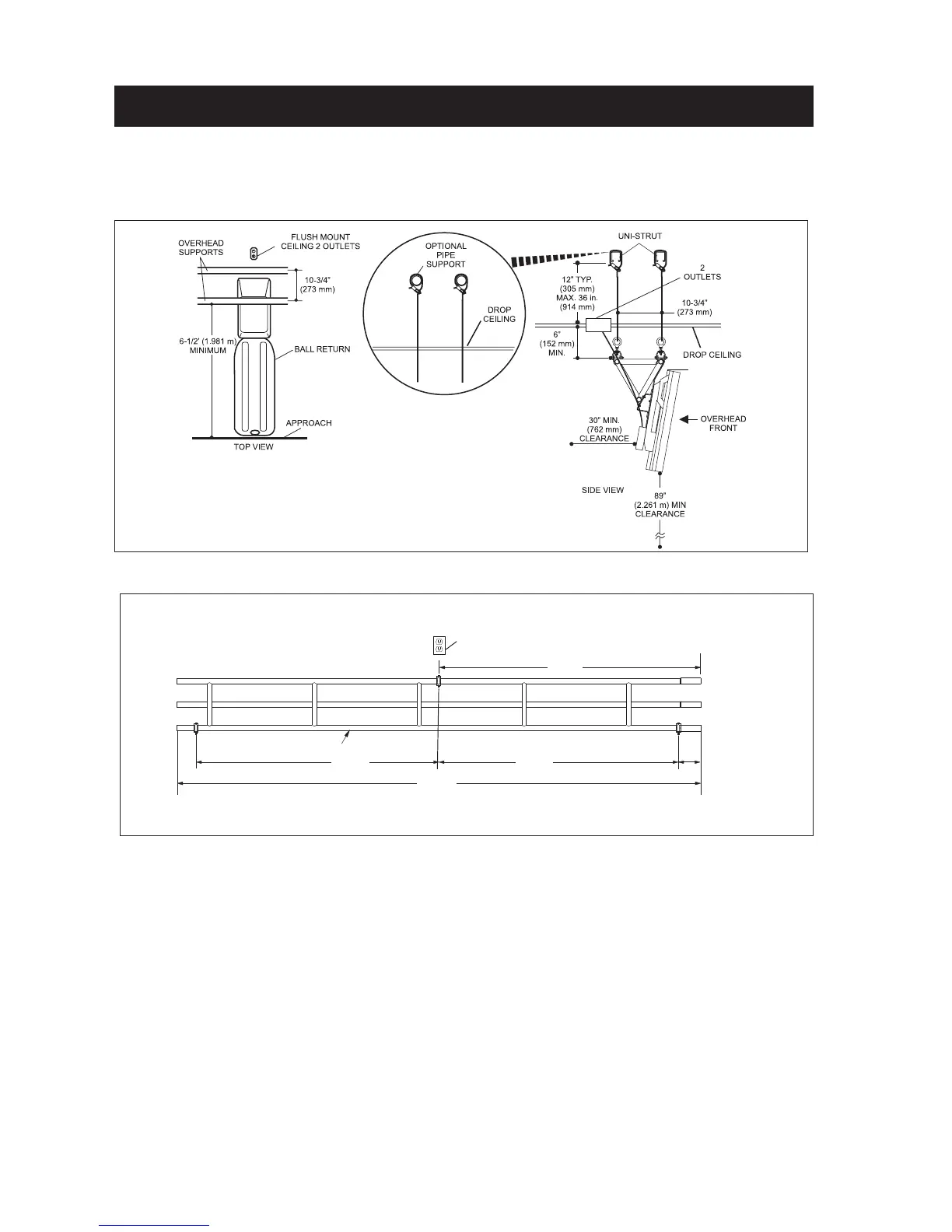

Wide Screen LED Overhead Video Display Support Specications
The customer is responsible for supplying, installing, and maintaining the proper position of these beams
or pipe (refer to gures below) and for having certication from an architect or structural engineer that the
method of support will be capable of supporting an additional weight actual/static per lane pair for up to triple
overheads.
Side View
Top View
ELECTRICAL
OUTLETS
CONTINUOUS WELDMENT
120”
(3.048 m)
FRONT OF
WIDE SCREEN LED
C
L
60”
(1.524 m)
57”
(1.448 m)
3”
(76 mm)
57”
(1.448 m)
