Brunswick Sync - Control Desk

48 Sync Pre-Installation
CONTROL DESK
Electrical Information
VOLTS HERTZ AC/DC PHASE
AMPS
PER UNIT
WATTS
BRANCH
CIRCUIT
CUSTOMER RESPONSIBILITY
100-130 50/60 AC 1 23 2730
2 WIRES +
GROUND
INSTALL CIRCUIT WITH APPROPRIATE
OUTLETS.
200-240 50/60 AC 1 12 2730
2 WIRES +
GROUND
INSTALLATION INFORMATION

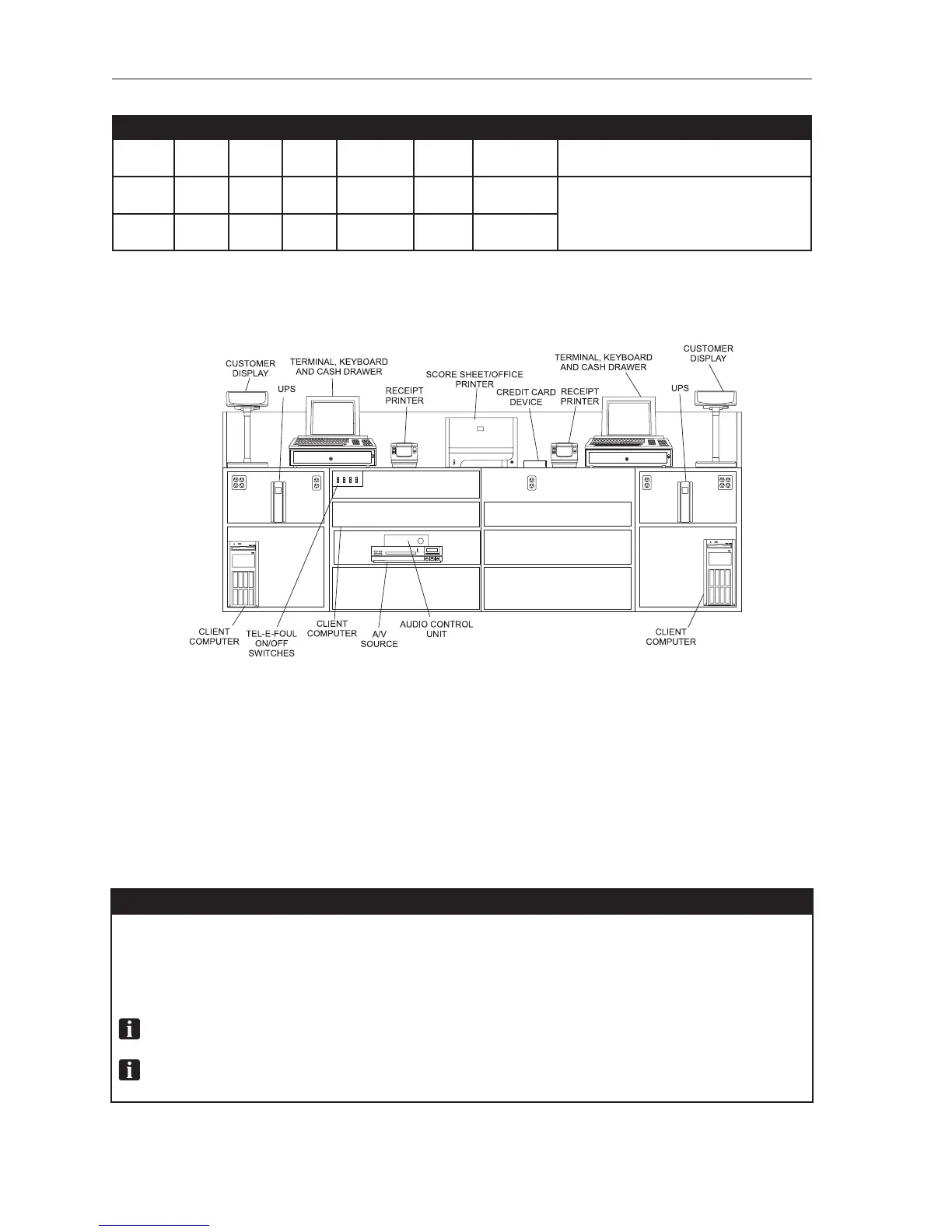

CUSTOMER’S RESPONSIBILITY: THE CONTROL DESK SHOWN IS AN EXAMPLE OF A TWO TERMINAL CONTROL
DESK. THE CONTROL DESK LAYOUT VARIES WITH INDIVIDUAL BOWLING CENTERS. THE DECISION OF
EQUIPMENT LOCATIONS SHOULD BE MADE BEFORE POWER OUTLETS AND CONDUITS ARE INSTALLED. PLEASE
PROVIDE OUTLETS IN SIMILAR CONFIGURATION AS SHOWN.
NOTE: TheCPUmustbewithin3-4ft(.9-1.2m)oftheterminalandprinter.
NOTE: TwocircuitsarenecessaryforeverythingattheControlDesk.
