Sync Pre-Installation 39
INSTALLATION INFORMATION

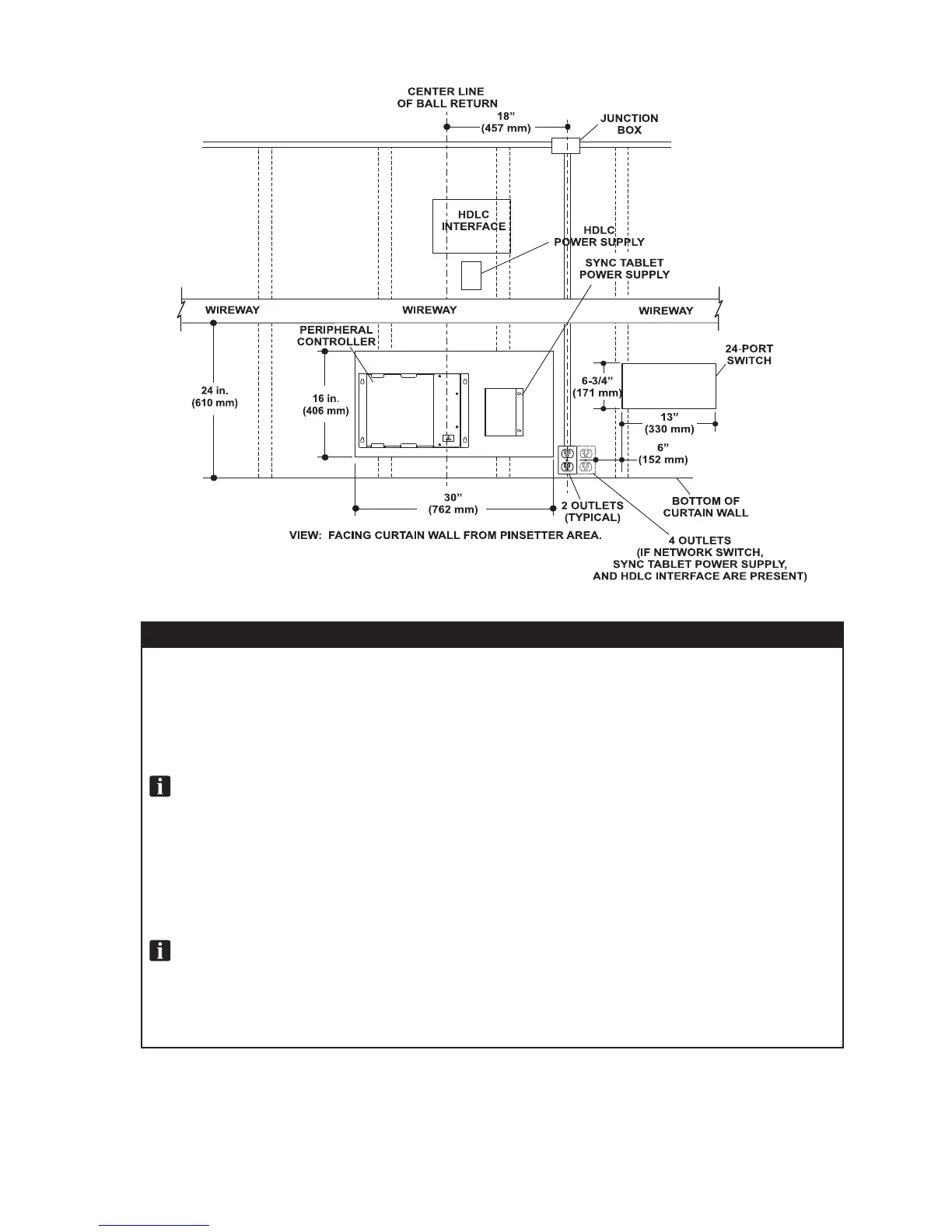

CUSTOMER’S RESPONSIBILITY: PROVIDE A SUITABLE LOCATION ON THE CURTAIN WALL, AS SHOWN ABOVE,
FOR THE MOUNTING THE PERIPHERAL CONTROLLER AND, AS NEEDED, ADD ON DEVICES INCLUDING SYNC
TABLET POWER SUPPLY, CURTAIN WALL SWITCH, AND HDLC INTERFACE.
IF A CURTAIN WALL IS NOT AVAILABLE, A SUPPORT STRUCTURE MUST BE INSTALLED TO HANDLE THE 25 LB.
STATIC WEIGHT LOAD PER LANE PAIR.
NOTE:IfBrunswickmaskingunitsarepresent,themountingpanelmaybemountedtothe
maskingunitstructurewithoptionalbracketkit.
INSTALL POWER RECEPTACLE ON THE CURTAIN WALL. REFER TO LOCATION CHART FOR EXACT LOCATION.
TYPICALLY, INSTALLATIONS REQUIRE 2 OUTLETS EACH LANE PAIR. FOR A LANE PAIR EQUIPPED WITH A
PERIPHERAL CONTROLLER, SYNC TABLET POWER SUPPLY, CURTAIN WALL SWITCH, AND A HDLC INTERFACE,
FOUR OUTLETS ARE NEEDED.
NOTE:AtlanelocationswheretheSyncTabletpowersupplyispresent,itwillshareapower
receptaclewiththePeripheralController.
BRUNSWICK RESPONSIBILITY: TO INSTALL THE ELECTRONICS MOUNTING PLATE ON THE CURTAIN WALL OR
SUITABLE STRUCTURE.
