Brusa ICS115 - 12.7.3.3 HV-Connector Pin Assignment (Code A); 12.7.3.4 HV-Connector Pin Assignment (Code B)

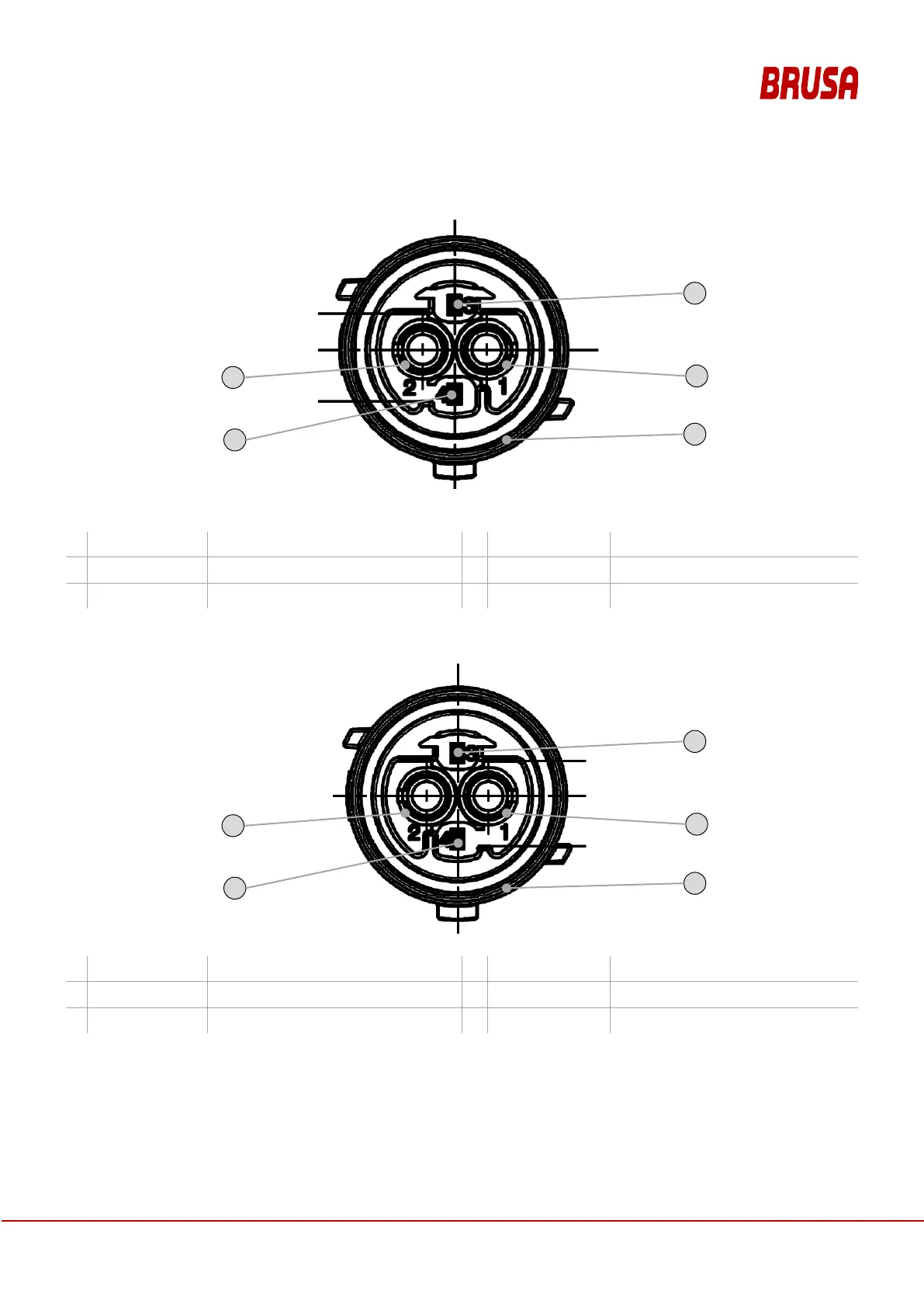

12.7.3.3 Pin Assignment HV-Connector (Code A)
1.
HV_DC_+
HV Battery Plus
2.
HV_DC_-
HV Battery Minus
3.
HVIL_in
HV-Interlock Loop Input
4.
HVIL_out
HV-Interlock Loop Output
5.
GND
Housing (equipotential bonding)
12.7.3.4 Pin Assignment HV-Connector (Code B)
1.
HV_DC_+
HV Battery Plus
2.
HV_DC_-
HV Battery Minus
3.
HVIL_in
HV-Interlock Loop Input
4.
HVIL_out
HV-Interlock Loop Output
5.
GND
Housing (equipotential bonding)
1
2
3
4
5
1
2
3
4
5
