Brusa ICS115 - 12.7.3.2 Pin Assignment LV-Connector

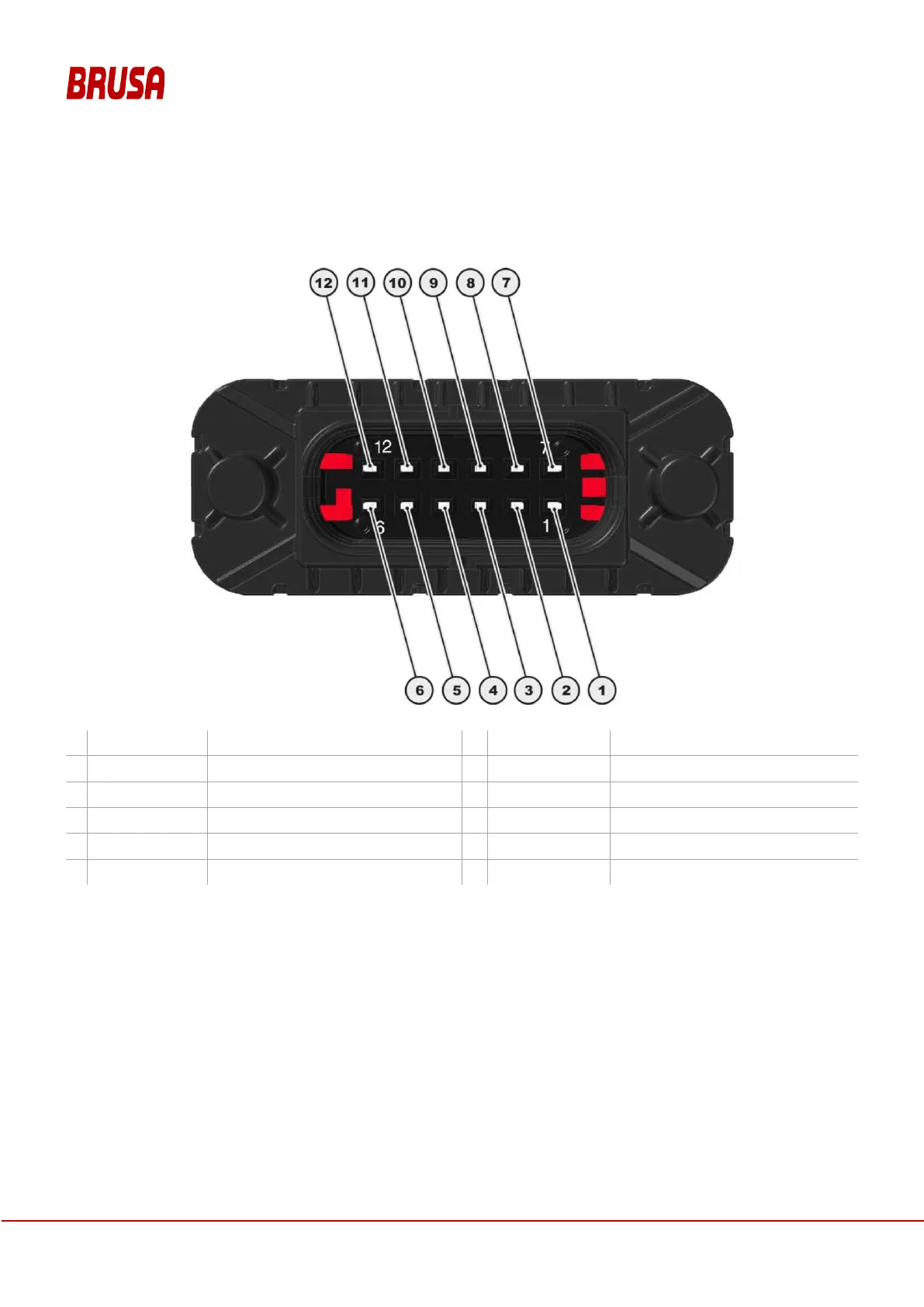

12.7.3.2 Pin-Assignment LV-Connector Vehicle 12-pin (Code B, device-side)
1.
Kl30
+12 V (supply system Plus)
2.
EV_CAN_H
EV CAN high
3.
Kl30C
Kl30 Crash
4.
HVIL_out
HV-Interlock loop output
5.
---
Not contacted
6.
---
Not contacted
7.
Kl31
Ground (supply system Minus)
8.
EV_CAN_L
EV CAN low
9.
HVIL_in
HV-Interlock loop input
10.
---
Not contacted
11
Debug_CAN_H
Debug CAN high
12.
Debug_CAN_L
Debug CAN low
Operation Manual
Inductive Charging System
ICS115
58
