22
includes Evolution small packaged products (SPP) and Evolution System
geothermal units.

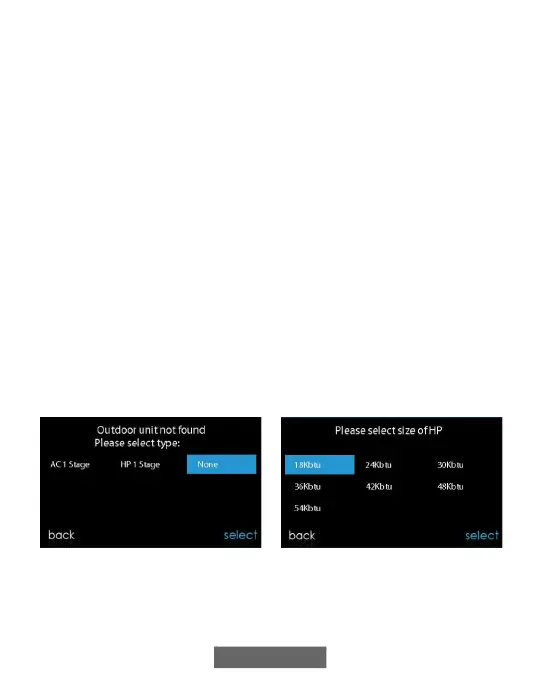

NOTE: If the outdoor unit cannot be found, the control will display
“Outdoor unit not found”.
• Select the appropriate unit installed; then, touch NEXT.
NOTE: For some communicating products (SPP and geothermal
package units), the selection screen may not be needed and may not
appear.
• The installer will first be instructed to select the appropriate size of the
outdoor unit; then, touch SELECT.
A13118
AC1Stage — 1-stage air conditioner
*
AC2Stage —
*. Network Interference Module (NIM) may be required for these
selections to be displayed.
2-stage air conditioner
*
HP1Stage —
1-stage heat pump
*
HP2Stage —
2-stage heat pump
None — No outdoor unit installed
