Appendix (figures and tables)

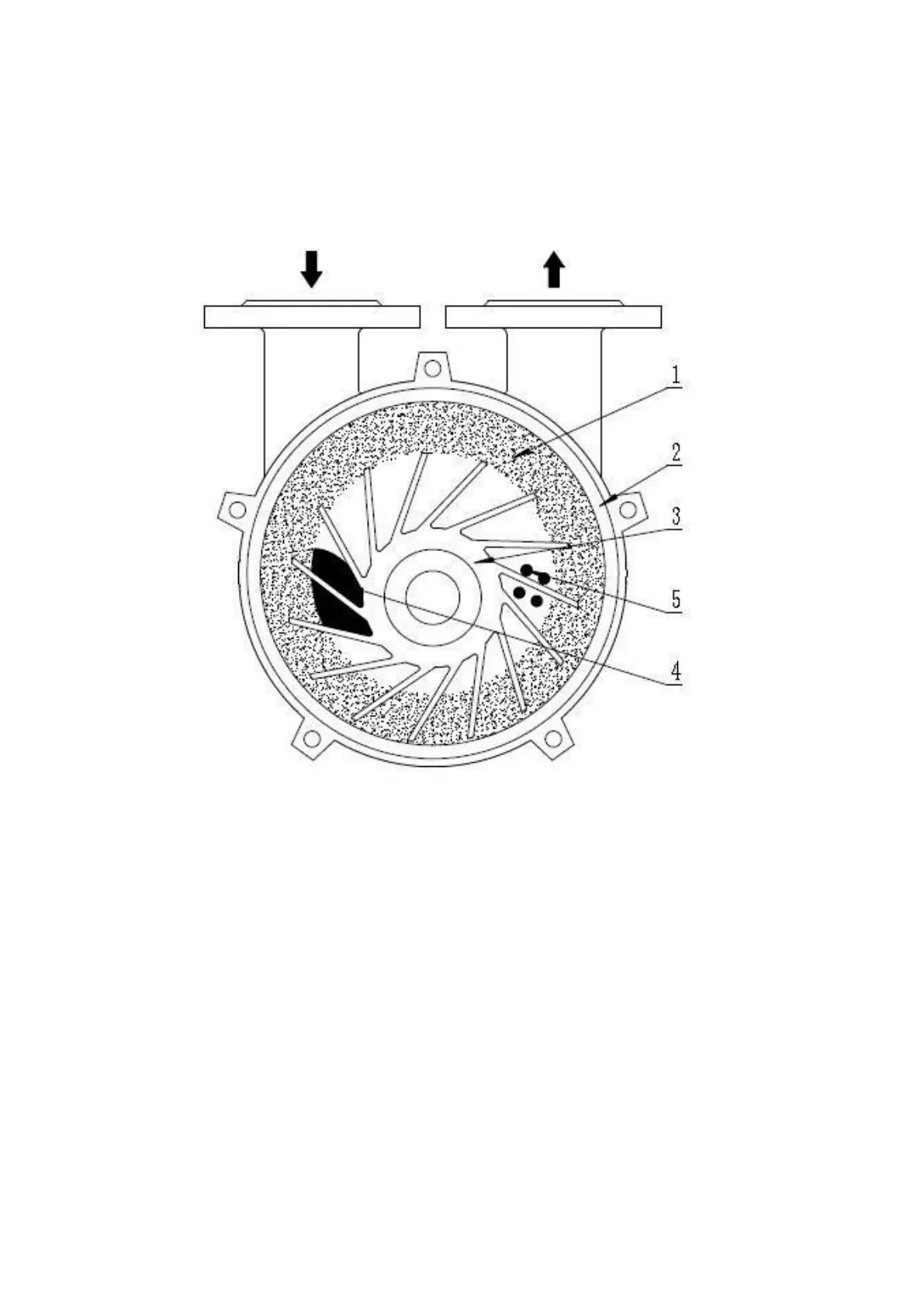

Figure 1. Pump working chamber in section (view from the side of the
pump cover)
1) working fluid ring; 2) working chamber wall; 3) impeller; 4) air inlet; 5) air outlet.
