Using your controls
5
Logamatic 2107 controls - We reserve the right to make any changes due to technical modifications. 17
Keys for extended functions
These keys are used, for example, to enter the day, set the time, select
temperature values, etc.

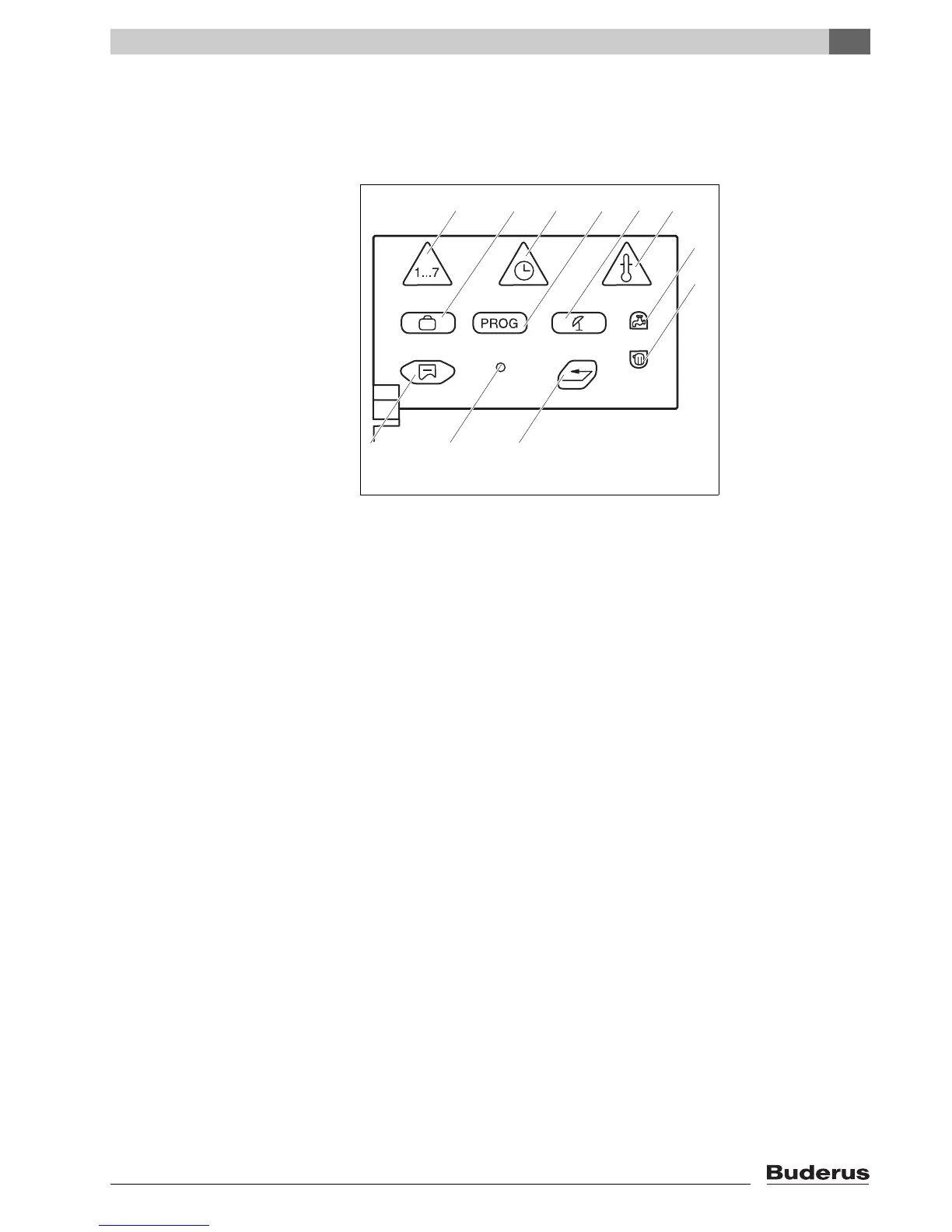

Fig. 6 Keypad for extended functions
Item 1: "Weekday" key – Enter the day of the week
Item 2: "Vacation" key - Set vacation function
Item 3: "Time" key – Set the time
Item 4: "PROG" key – Select program
Item 5: "WWSD" key – Sets the warm weather shutdown
temperature
Item 6: "Temp" key – Select temperature values
Item 7: "DHW" key – Enter the domestic hot water temperature
Item 8: "Heating zone" key – Call up the heating circuits
Item 9: "Enter" key – Returns to standard display
Item 10: "Install" key – Call up the service level
Item 11: "Display" key – Select the standard display
2
6
9
10
11
4
5
1
3
7
8

Buderus Logamatic 2107 Specifications

General

Category	Control Systems
Type	Heating Control Unit
Voltage	230 V
Frequency	50 Hz
Protection class	IP20
Ambient temperature	0°C
Application	Heating systems
