6. See Figure 2-83. Install slider tube into slider assembly.
CAUTION
The outer tube can move freely up and down on the
slider tube. Always hold both the slide pipe and outer
tube to prevent damage to bushings and seals.
7. See Figure 2-84. Install spring onto damper assembly.
8. See Figure 2-85. Install center bolt and washer.
9. Coat the guide bushing with fork oil or sealing grease.
10. See Figure 2-86. Install guide bushing onto the slider
tube.

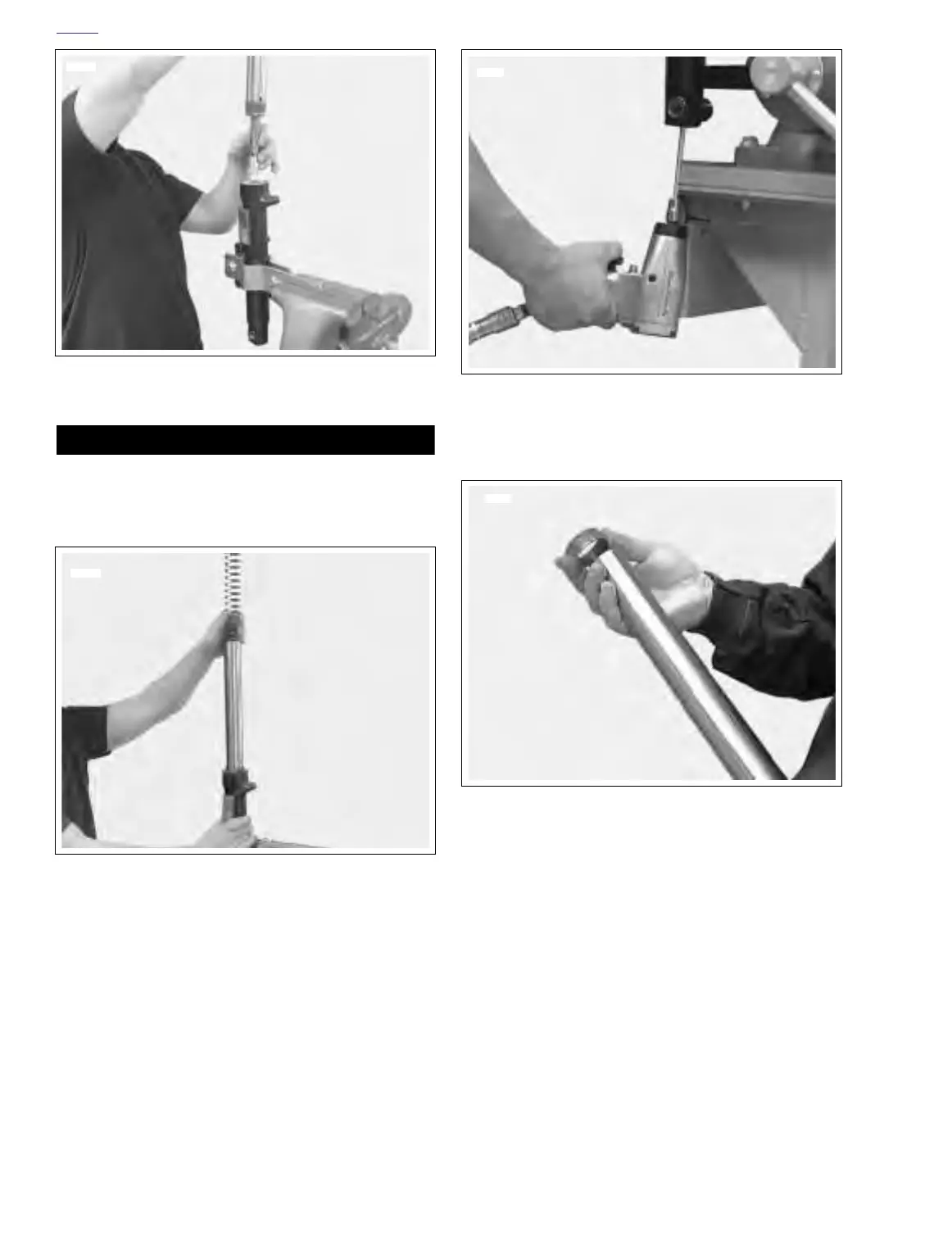

Figure 2-83. Slider Tube
Figure 2-84. Install Rebound Spring
3790
3796
Figure 2-85. Install Center Bolt
Figure 2-86. Install Guide Bushing
3793
3774
