Technical data
Rotating Remote Sensor:
exterior: Chrome-plated steel, stainless
steel, aluminum
Sealing material: Linear Remote Sensor:
exterior: EPDM
inside: NBR
Rotating Remote Sensor:
exterior: Neoprene, PVC
inside: NBR
Area covered by the
measurement sensor: Linear: 0 – 45 mm
Rotating 0° – 360°
6.6 Pneumatic data
Only if installed on process valves with internal air supply
Type 2103, 2300 and 2301
Temperature range
of compressed air: see the process valve operating
instructions
Pressure range: 0 – 7 bar
Connections: Plug-in hose connector Ø 6mm / 1/4"
Socket connection G1/8
6.7 Type label (example)
8798 PU02 digital
P = 0 ... 7 bar
24V
IP65/67
Tamb -25 - +80 °C
S/N 1001
00123456
D-74653 Ingelfingen
W15MA
Identification number; Date of
manufacture (encoded)
Operating voltage; Degree of
protection
Type; Features of the type code applicable to UL
and ATEX
Pneumatic Controller
Bar code
Serial number ; CE mark
Max. ambient temperature

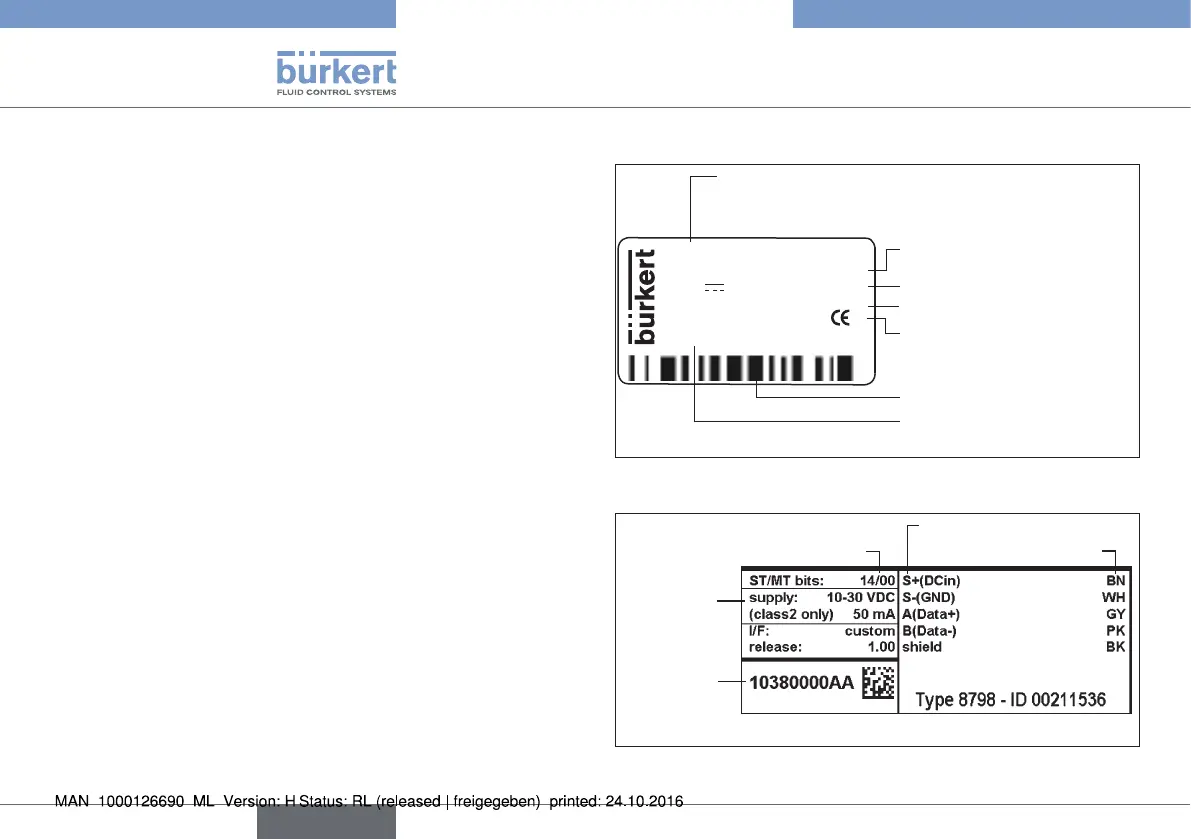

Fig. 3: Example of type label; linear Remote Sensor
Wire colors
Operating
voltage
Serial
number
Electrical configuration
Resolution
Fig. 4: Example of type label; rotating Remote Sensor
