12
Control and display elements
7 CONTROL AND DISPLAY
ELEMENTS
Special operation of this Remote Sensor is not necessary. The necessary
settings are made on the positioner Type 8791 or Type 8792/8793
(see relevant chapter of the positioner operating instructions).
7.1 Display elements of the linear
Remote Sensor
2 LEDs, which are also visible from outside through the transparent
cap, display the sensor mode.
Status
LED
green
Status
LED
red
Display Remedial action
off off
No operating
voltage
Check the supply voltage
of positioner
Type 8791,
Type 8792/8793.
Check the cable con-
nection configuration.
flashing on
Sensor is operated
outside the cov-
erage area.
Check adaption to
actuator; the puck on
the switch spindle must
not exceed the sensor
surface.
flashing off Sensor is in operation and sending position value
Tab. 1: LED display elements; linear Remote Sensor
Status LED green
Status LED red
View without transparent cap

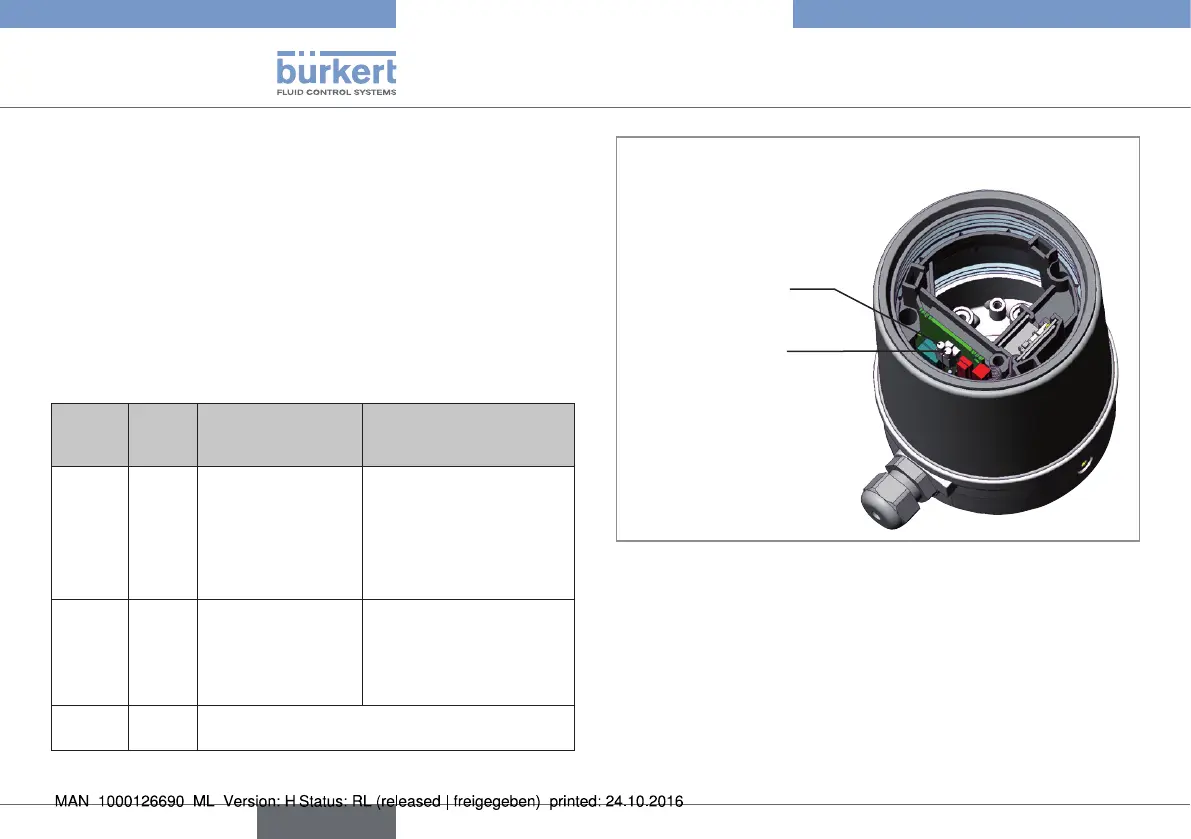

Fig. 6: LED display elements; linear Remote Sensor
english
Type 8798
