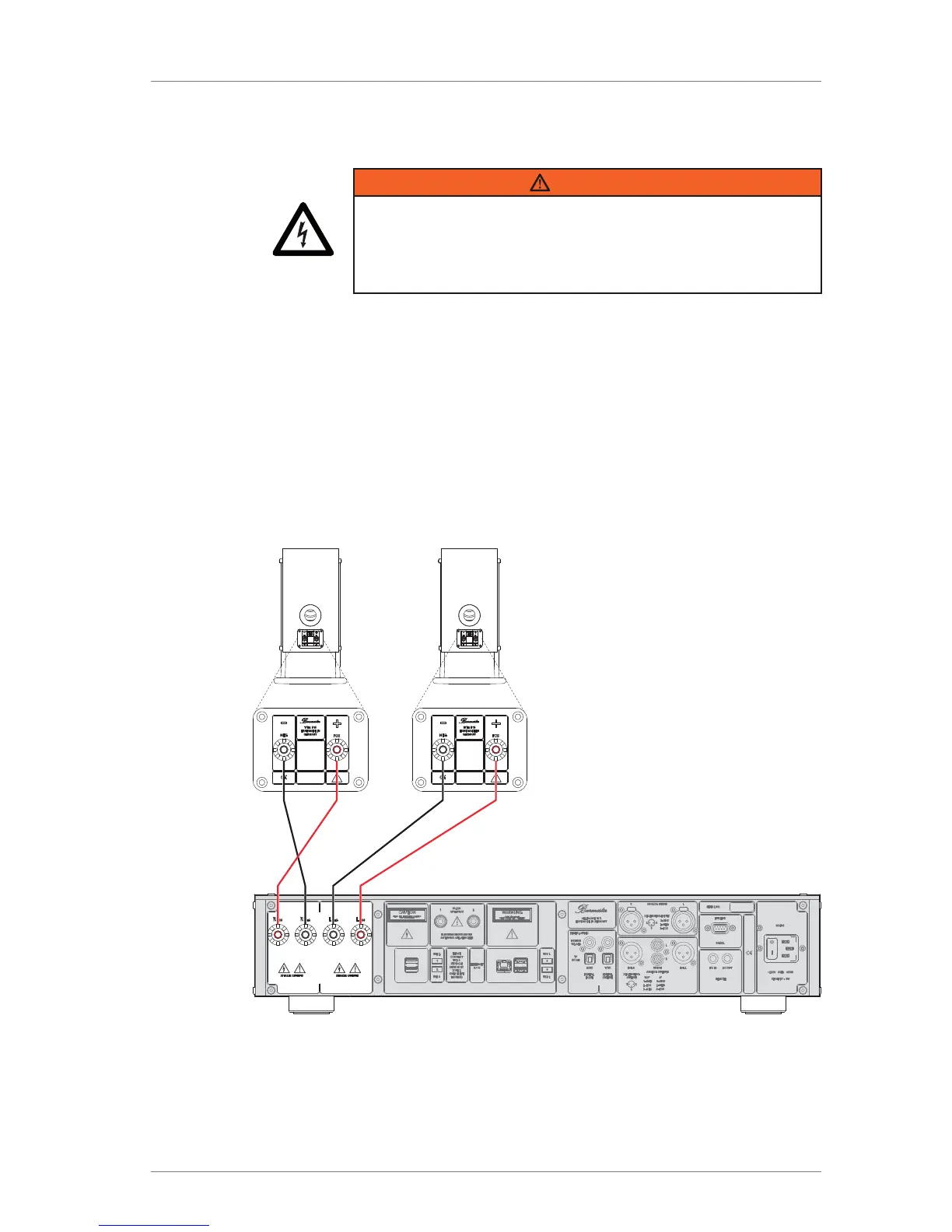

Connecting the speaker outputs
WARNING
Dangerous voltage on the connection terminals
The connection terminals on the integrated amplifier may carry
dangerous voltages during operation.
►
Do not touch the connection terminals when the device is in
operation.
A connection can be made using either cable lugs or 4 mm banana plugs. For acoustic
reasons, Burmester recommends equipping the ends of the speaker cables with cable
lugs. Connecting cables to these terminals requires the use of ready-to-fit wires or must
be performed by a qualified professional.
Correct polarity
►
When connecting the speakers, pay attention to the correct polarity of the
connections. It is important to establish all connections in phase:
— positive output 161 (POS) = speaker positive output
— negative output 161 (NEG) = speaker negative output
Connecting the channels out of phase causes poor bass and diffuse playback. When in
doubt, please ask your specialist dealer.
