9
T D G

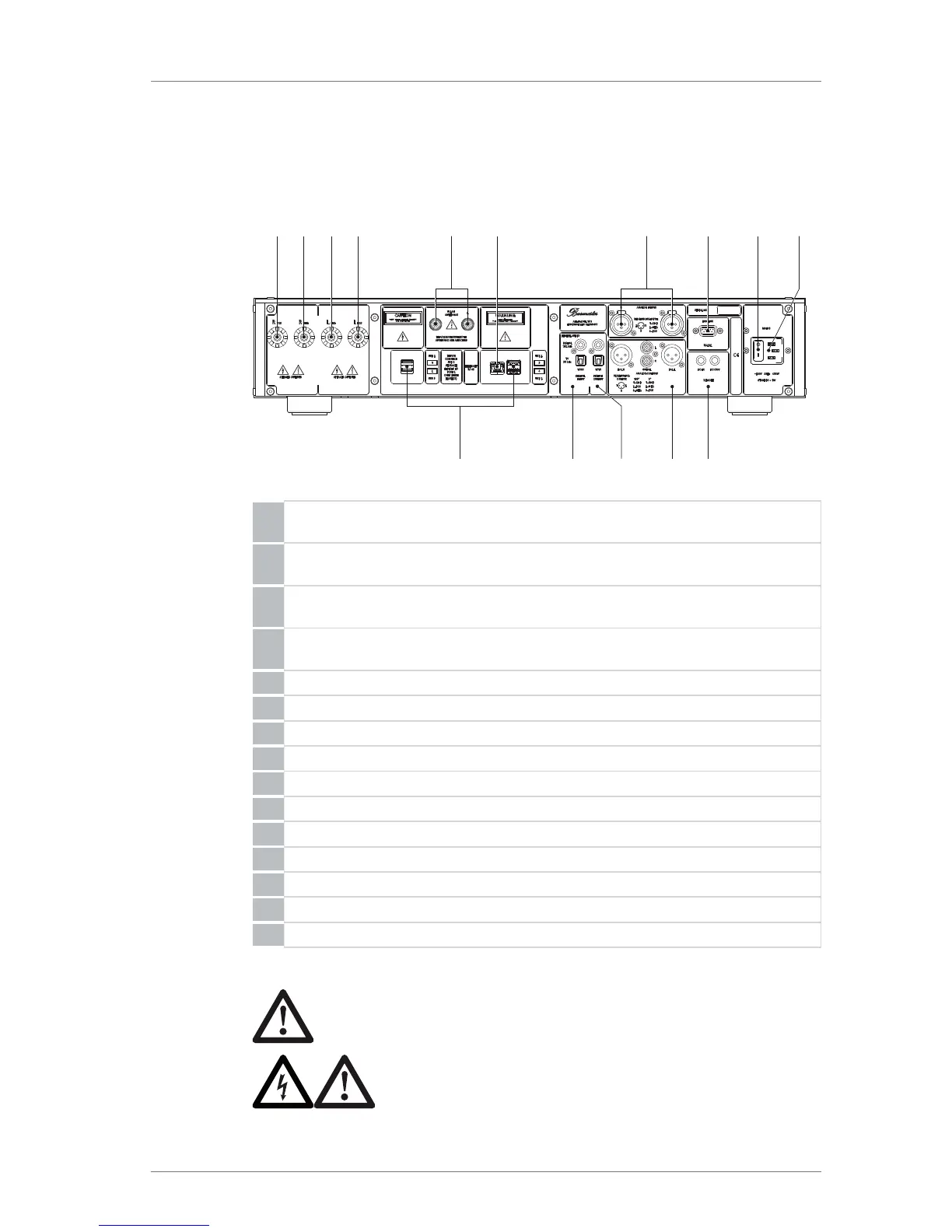

Back side
14 15 16 17 18 19 20
21 22
23
24 25 26 27 28
14 Right speaker output, positive
Right channel, positive connection (+)
15 Right speaker output, negative
Right channel, negative connection (–)
16 Left speaker output, negative
Left channel, negative connection (–)
17 Left speaker output, positive
Left channel, positive connection (+)
18 Wi-Fi antenna sockets
19 Ethernet connector
20 Analog input: 1 x balanced
21 BURLINK interface
22 Power switch
23 Mains socket
24 USB ports: 3 x USB 2.0, 1 x USB 3.0 (blue)
25 Digital Inputs: 1 x TOSLINK, 1 x RCA
26 Digital Outputs: 1 x TOSLINK, 1 x RCA
27 Analog Outputs: 1 x balanced, 1 x RCA
28 Remote out- and input
This symbol on your device indicates that you can find important
information in the operating instructions.
This symbol combination on your device warns of the danger of an
electrical shock when touching the terminals. During operation,
they can carry dangerous voltages.
