C-Nav Hardware Reference Guide
33

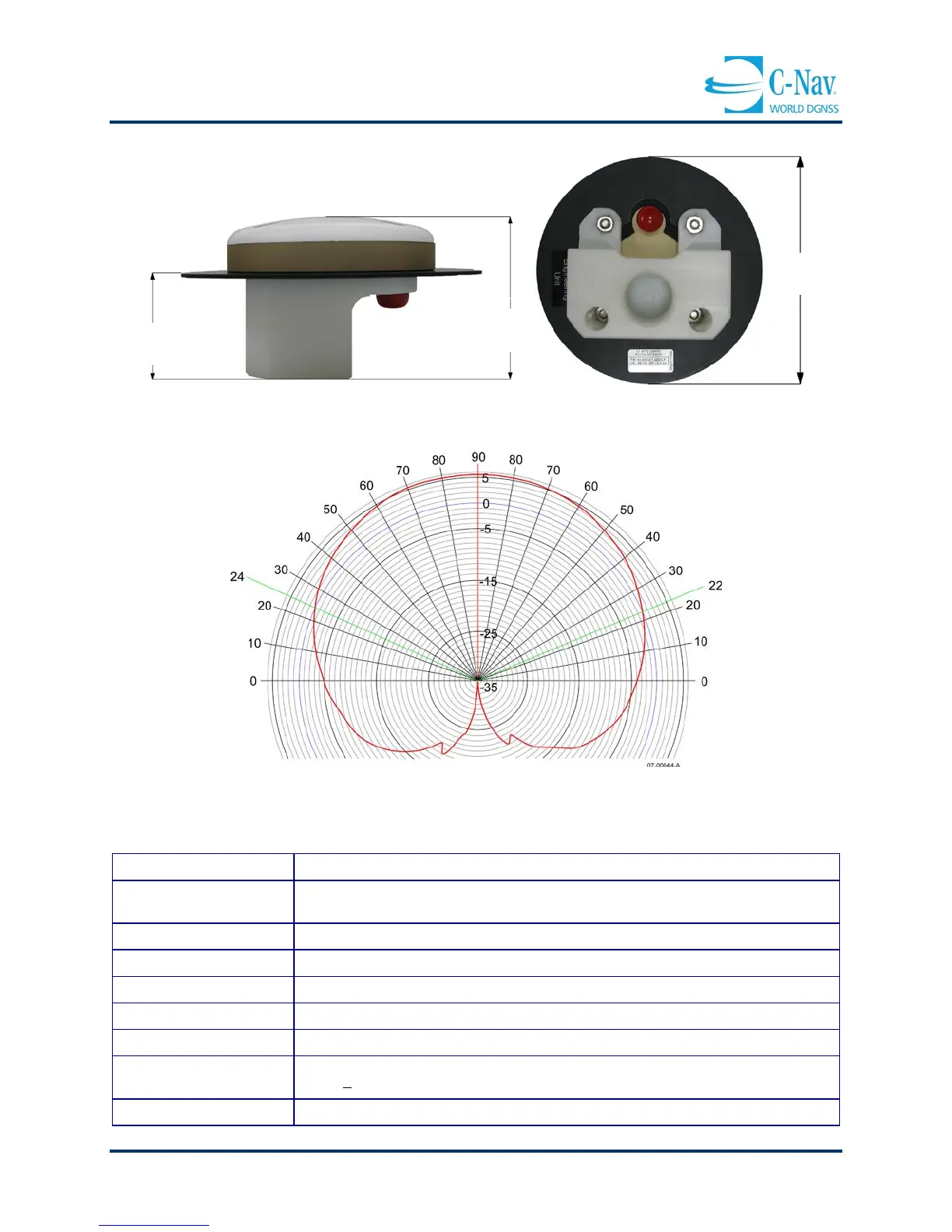

Figure 3-12: C-Nav1010 Standard Antenna Dimensions
Figure 3-13: C-Nav1010 Standard Antenna Radiation Pattern
Table 3-11: C-Nav1010 L-band Antenna Specifications (45° - 25°)
Part Number
P/N: NAV82-001018-0001LF (45° - 25°)
Frequency
1525-1575 MHz
INMARSAT StarFire™
Polarization
Right Hand Circular (RHCP)
Pre–Amplifier
34dB gain min.
Noise Figure
2.9dB
Impedance
50 Ohms
Input Voltage
2.5 to 24 VDC
Power Consumption
0.3W typical
60mA +10mA @ 5.0VDC
Connector
TNC Female
1.5”
[38mm]
2.3”
[59mm]
5”
[127mm]
