C-Nav1000 Display Mounting Options
Gimbal Mount

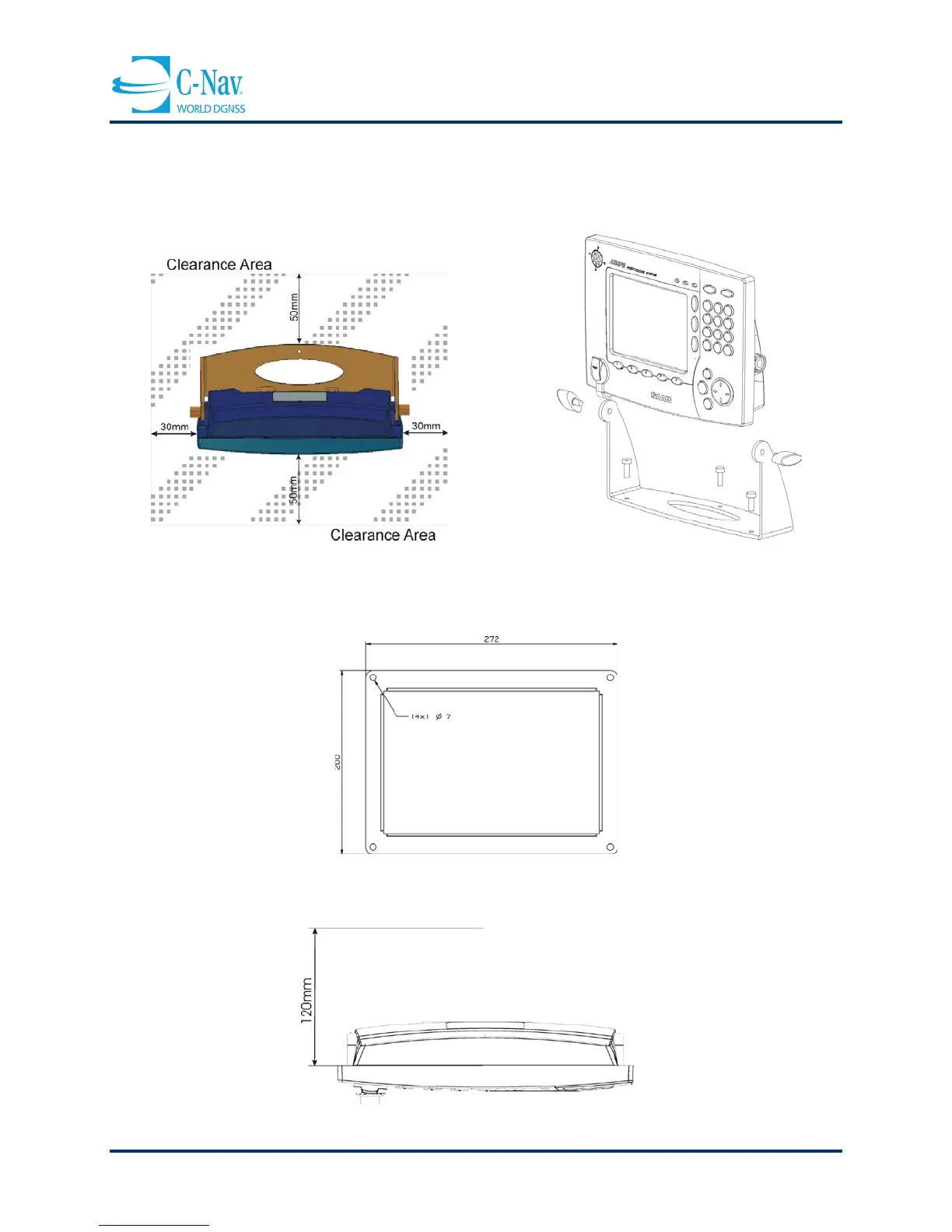

Figure 3-40: Gimbal Mount Clearance Area
Panel Mount
Figure 3-41: Panel Mount Frame Dimensions (mm)
Figure 3-42: Clearance Distance Behind the Display (Panel Mount)
