C-Nav Hardware Reference Guide
59

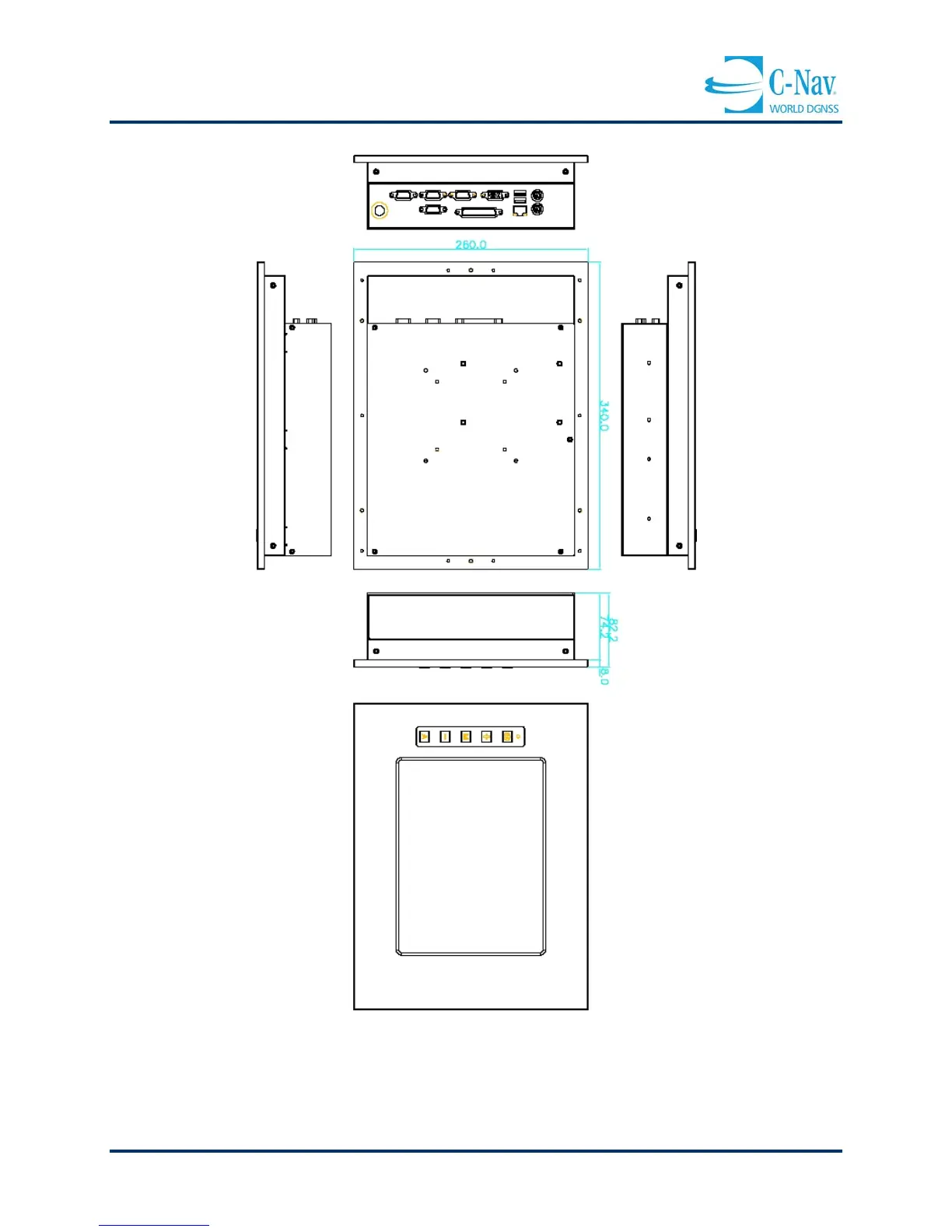

Figure 3-59: C-NaviGator II (side USB-port model) Outline Diagram (mm)
Both inside and outside mounting holes on vesa mount are M4 x 16mm in size.
Inside holes have 75mm spacing
Outside holes have 100mm spacing
