Coax-Seal® Weather Sealant Installation

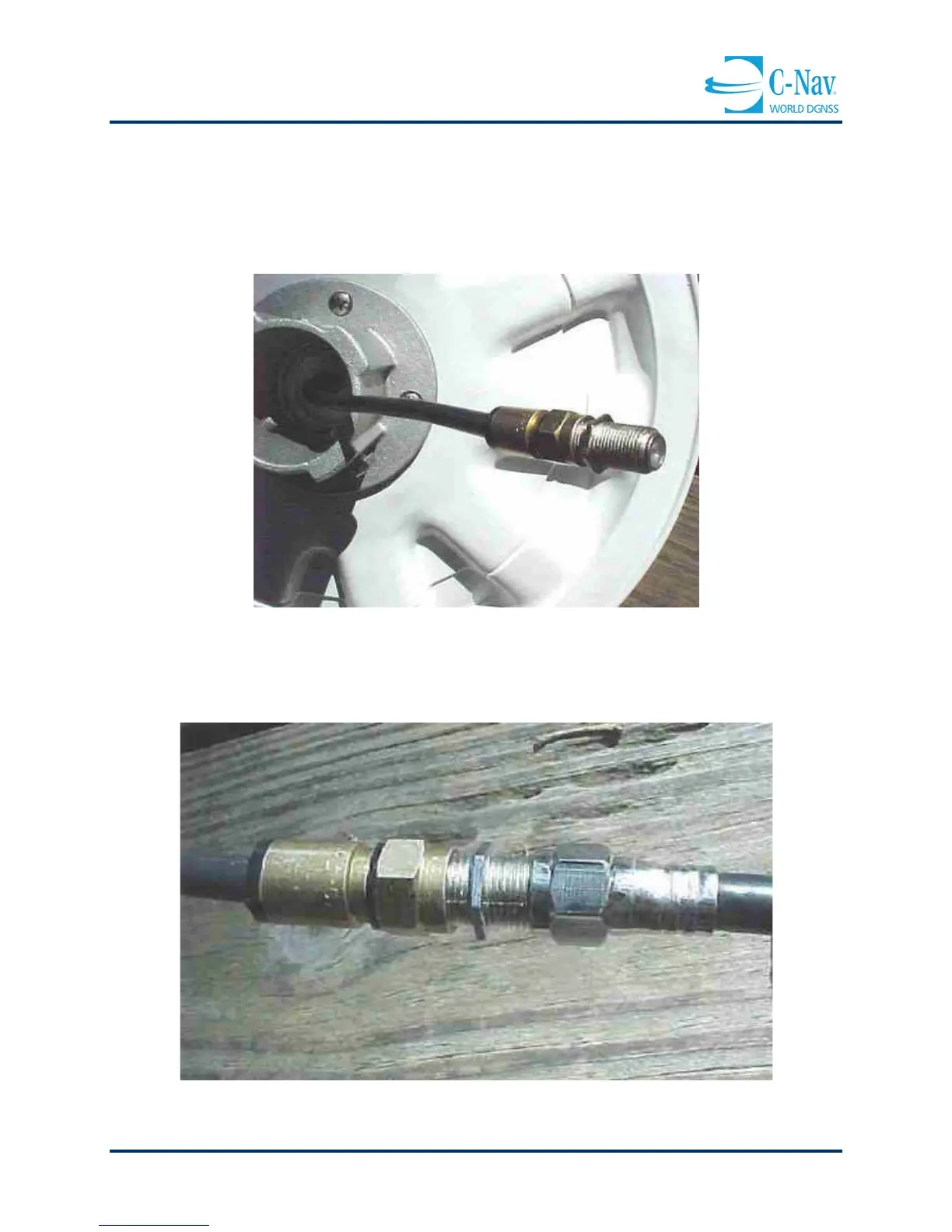

1. Shown below is a short pigtail of RG-59U coax cable terminated in a Snap and
Seal "F" connector which is then joined to a female-female adapter or barrel
connector.
Figure 5-9: RG-59U Coaxial Cable
2. The next few photos will show how this barrel connector is used in a splice and
how it is waterproofed for marine use.
Figure 5-10: Coaxial cable with Barrel Connector
