C-Nav Hardware Reference Guide
39

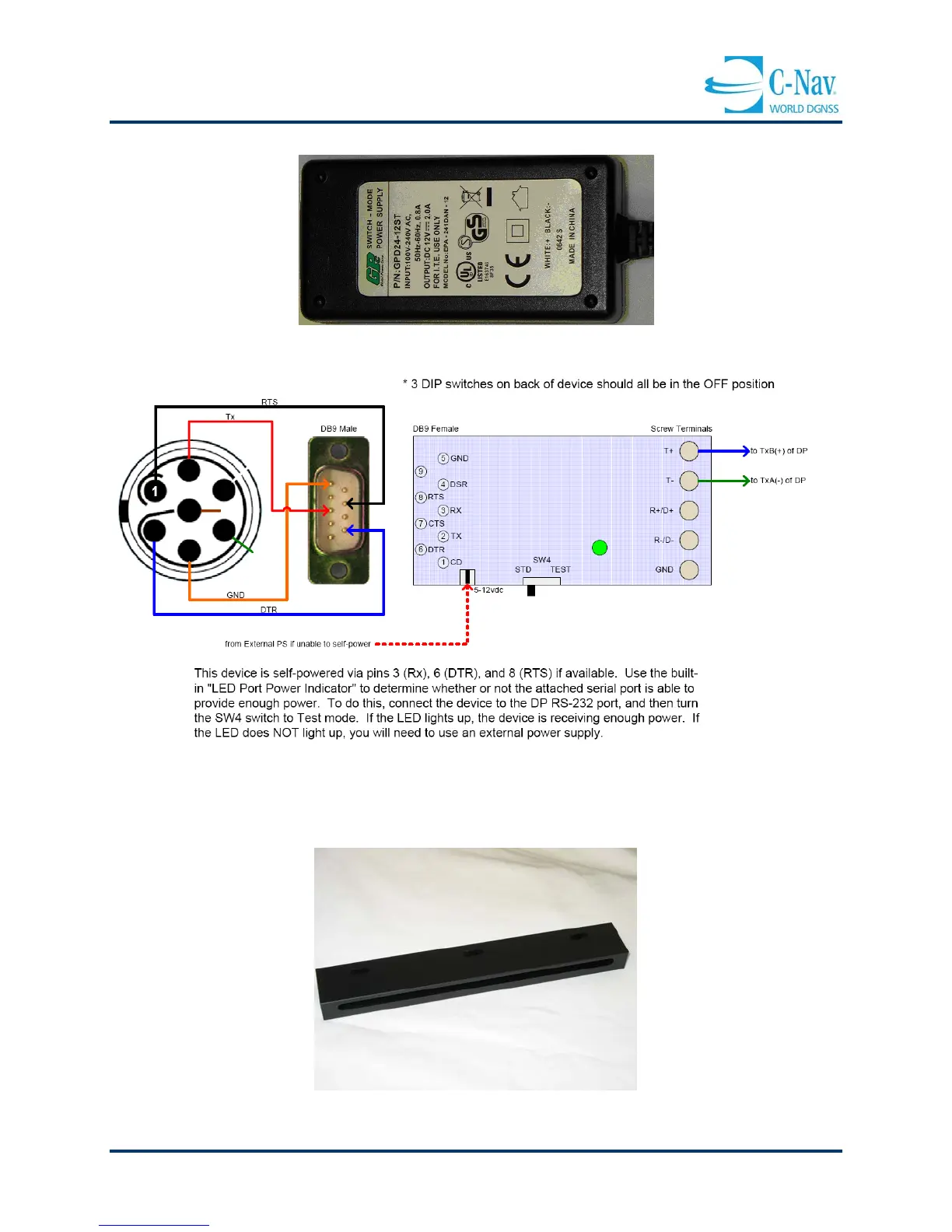

Figure 3-21: C-Nav2050 Power Supply
Figure 3-22: C-Nav2050 RS-232 to DP RS-422 MOXA Converter (MOXTCC-801)
• The C-Nav2050 chassis/ground is internally connected to the power ground, thus the
Isolation Mount Adaptor may be needed when using DC power to prevent ground loops.
Figure 3-23: C-Nav2050 Isolation Mount Adaptor
