C-Nav Hardware Reference Guide
55

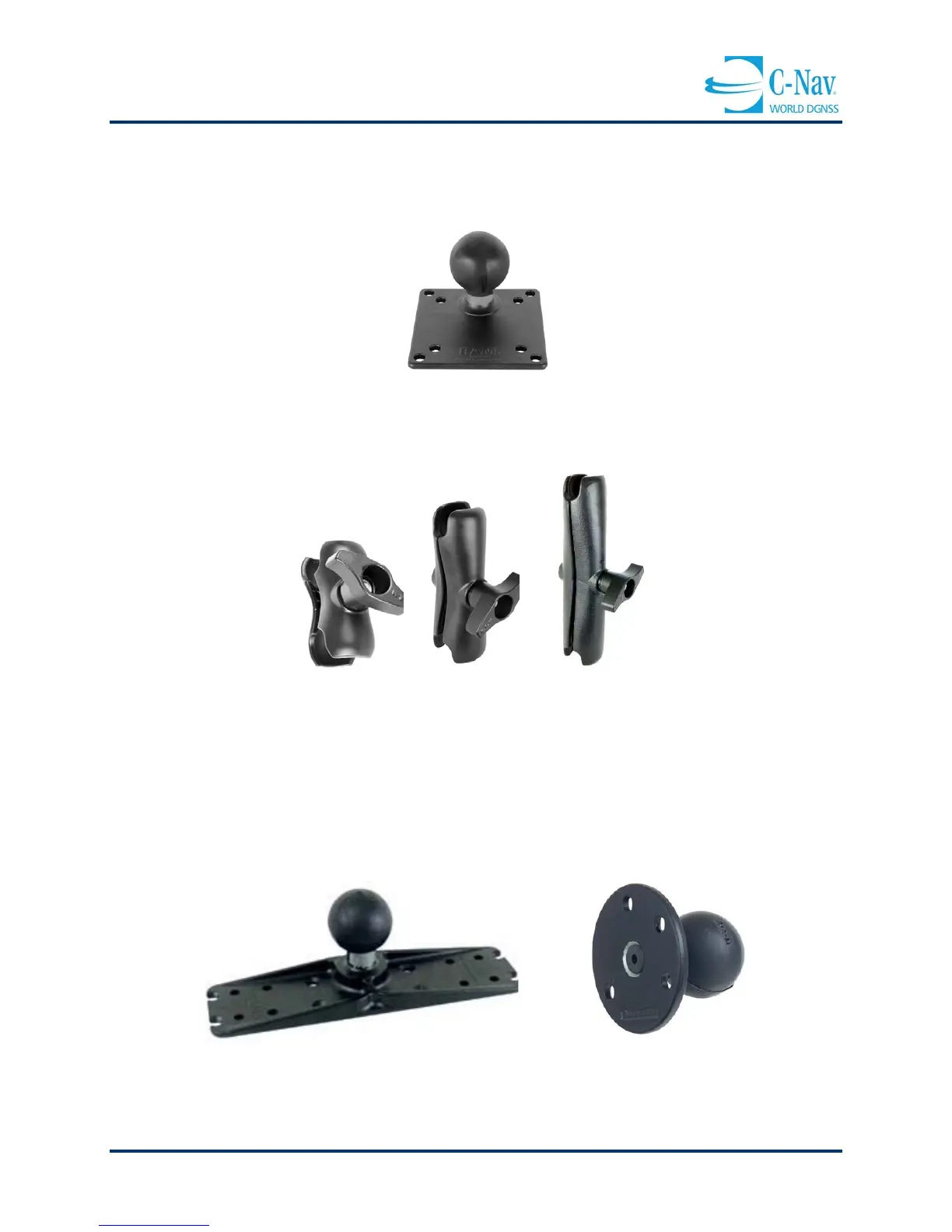

C-NaviGator II Mounting Options
Option #1: Allows mounting from ceiling, wall or desktop with fully adjustable positioning.
Figure 3-52: RAM 100 75 VESA Base (w/ Steel Reinforce) / RAM-D-246U-IN1
This piece fits to the standard VESA mounting holes on the back of the C-NaviGator.
Figure 3-53: RAM Double Socket Arms
RAM-D-201U-C / RAM Double Socket Arm SHORT (3.63”)
RAM-D-201U / RAM Double Socket Arm MEDIUM (6.88”)
RAM-D-201U-E / RAM Double Socket Arm LONG (11.75”)
Choose from one of the arms above. We recommend the medium length.
Figure 3-54: RAM 11" X 3" Base (w/ Steel Reinforce) / RAM-D-111B-IN1U (left) &
RAM 3.68 DIA. BASE (w/ Steel Reinforce) / RAM-D-202U-IN1 (right)
This piece is fixed to the ceiling, counter top or wall.
