C-Nav IALA - Figure 5-3: Duburring Tool; Figure 5-4: Prep;Strip Tool (Smaller End)

C-Nav Hardware Reference Guide
76
3. Debur the center conductor using a deburring tool or a file.

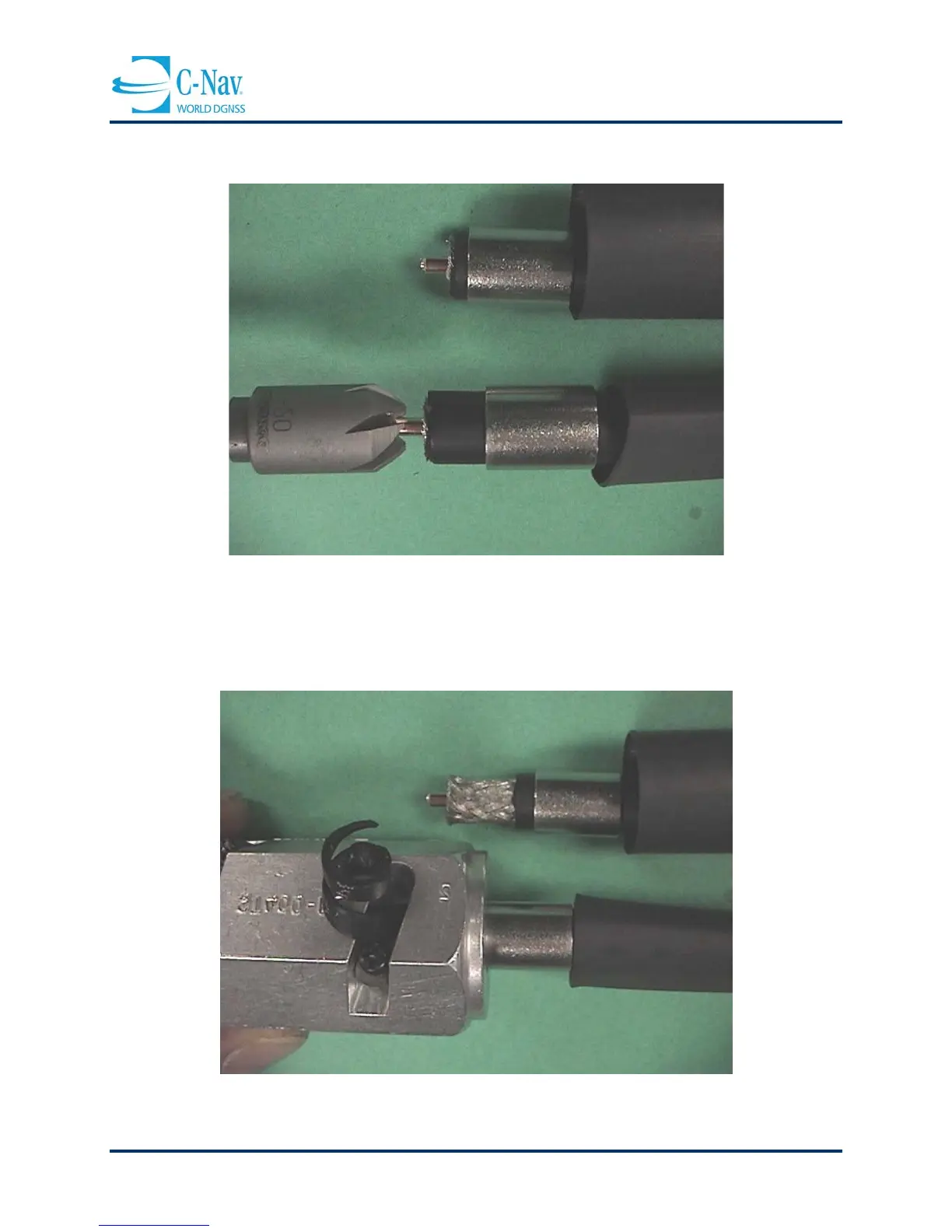

Figure 5-3: Duburring Tool
4. Insert the cable into the opposite end of the prep/strip tool and rotate clockwise
until the tool spins freely. Remove the tool (If you are using a knife to complete
this step, be careful not to nick the braids).
Figure 5-4: Prep/Strip Tool (smaller end)
