Chapter 5 ...................... Technical Reference and Interface Guide
Coaxial Cable
Terminating Coaxial Cable (Times Microwave Systems)
1. Flush cut the cable squarely

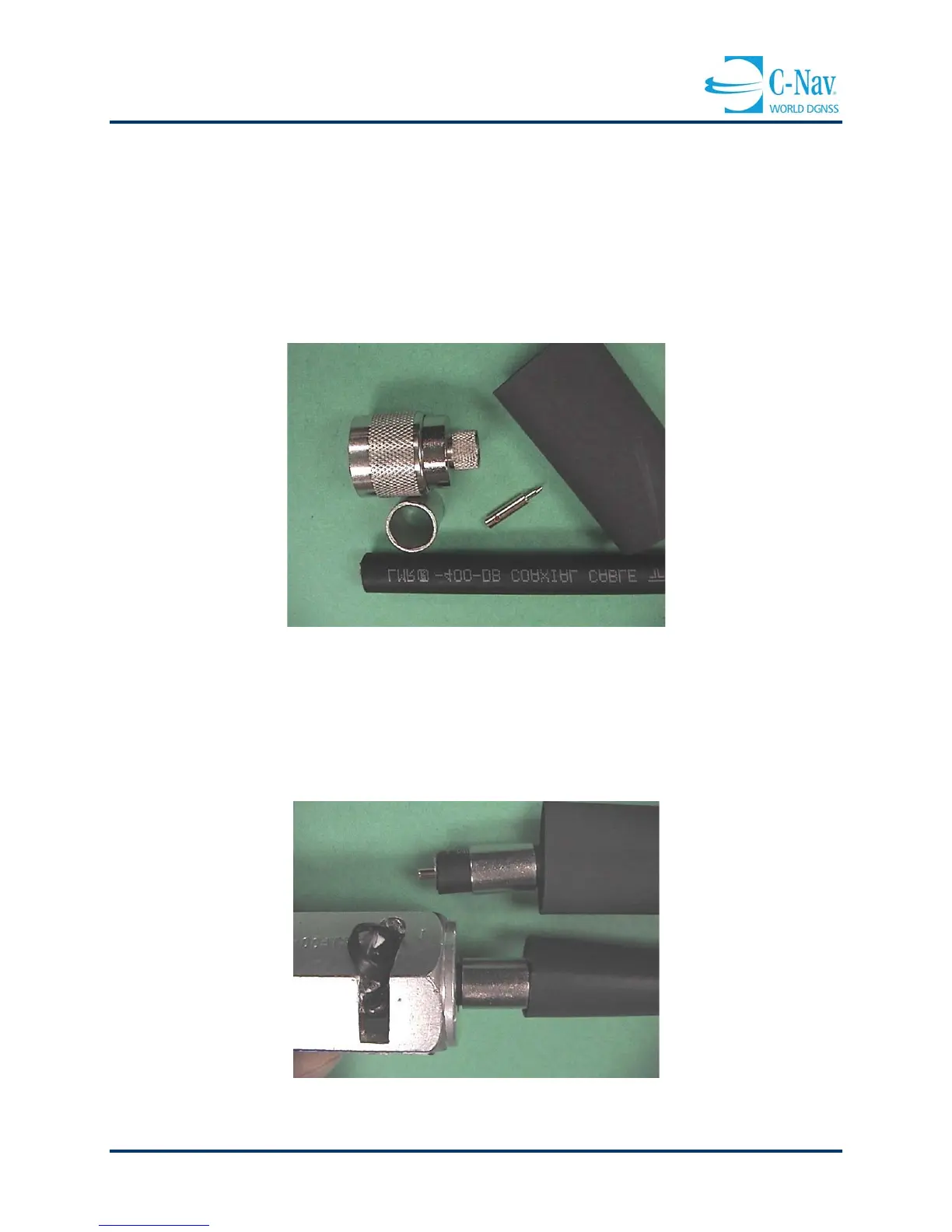

Figure 5-1: Components for Termination of Coaxial Cable
2. Slide the heat shrink boot over the end of the cable, followed by the ferrule. Slide
the first end of the prep/strip tool over the end of the cable and rotate it
clockwise. Spin the tool until it spins freely. Remove the tool and any residual
plastic from the center conductor by rotating a knife around the circumference of
the center conductor at the face of the core.
Figure 5-2: Prep/Strip Tool (large end)
