C-Nav Hardware Reference Guide
34
Operating Temp
-55°C to +85°C
Finish
Skydrol resistant polyurethane Enamel base Iriditeper MIL-C-5541
Material
6061-T6 Aluminum alloy base composite radome, impact, abrasion, UV, solvent,
skydrol resistant, and fire retardant
Weight
5.2oz [146g]
Vibration
>30g’s
Designed to
FAA TSO-C144, DO-160D, D0-228, MIL-C-5541, MIL-I-45208A, MIL-STD-810, AND
SAE J1455
Wind loading
135 MPH

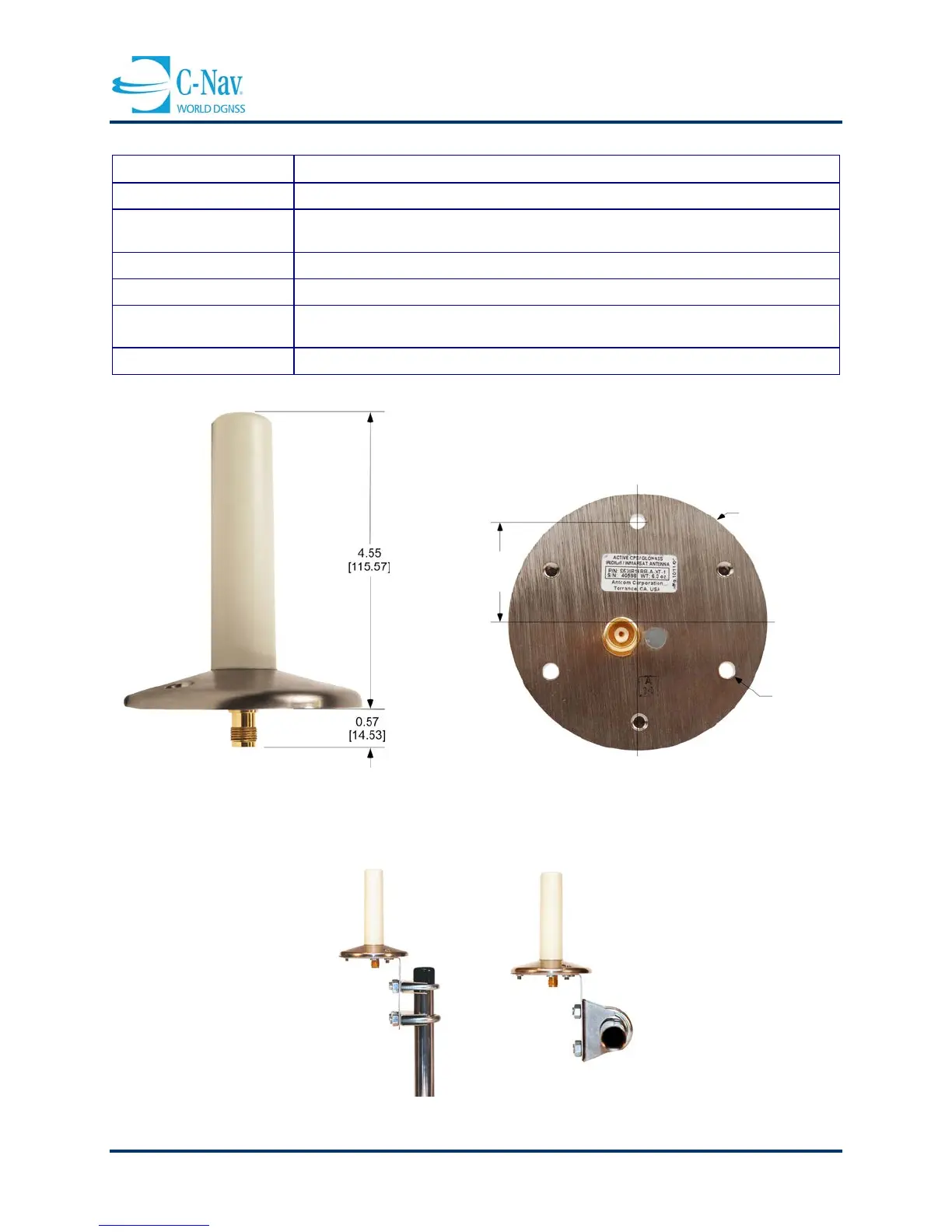

Figure 3-14: C-Nav1010 L-band Antenna Dimensions (45° - 25°)
Figure 3-15: C-Nav1010 NAV82-001018-0001LF Antenna Mounting (45° - 25°)
Ø 0.20 [5.1]
Ø 0.385 [9.78]
100°
Ø 3.5
[88.9]
1.344
[34.12
