5. Apply a small amount of RMA flux around the exposed center conductor.

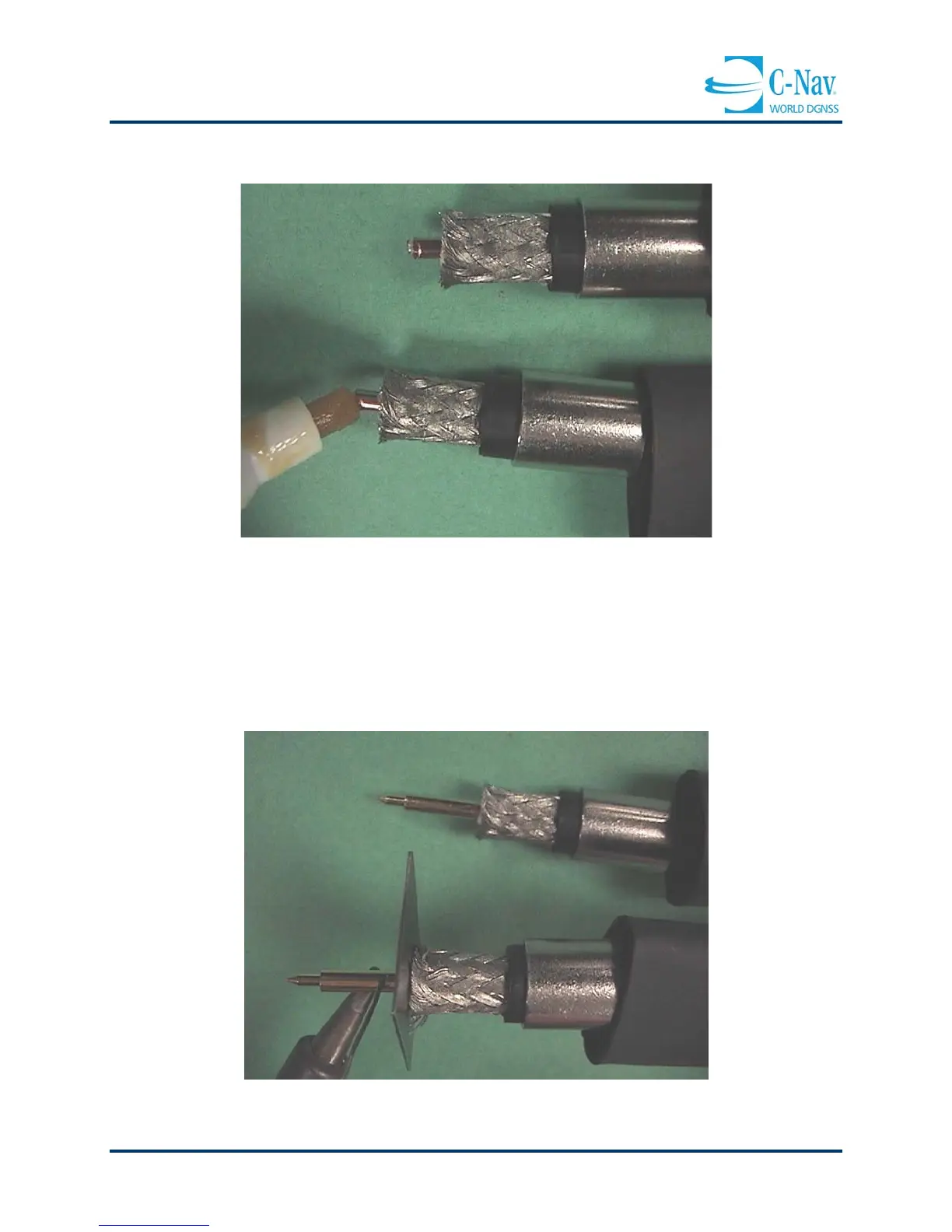

Figure 5-5: RMA Flux Application
6. Place a piece of solder into the pin until it bottoms. Trim the solder flush with the
back of the pin with a knife. Place a shim over the cable and up against the core
(a razor blade will do). Now place the pin over the center conductor and heat the
base of the pin with a soldering iron while monitoring the weep hole in the pin.
Remove the heat when you have seen the solder has flowed and wetted
properly.
Figure 5-6: Soldering
