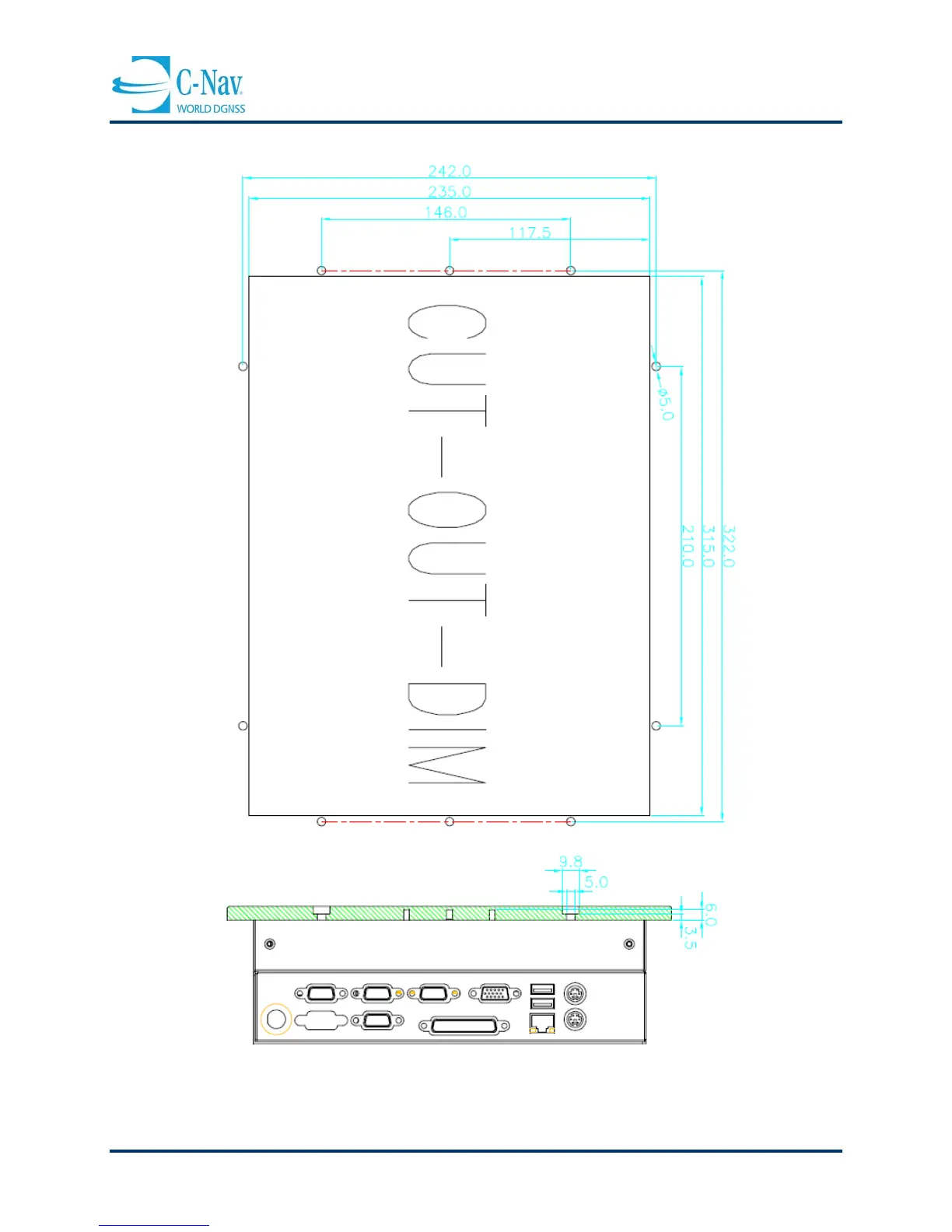

Figure 3-60: C-NaviGator II Cut-out Diagram (mm)
Cut-out Panel includes hardware to facilitate bolting of the C-NaviGator from the rear via M4 x
16mm sized bolts (6 places) or from the front via M4 or #10 sized bolts (4 places, rev. A only)
