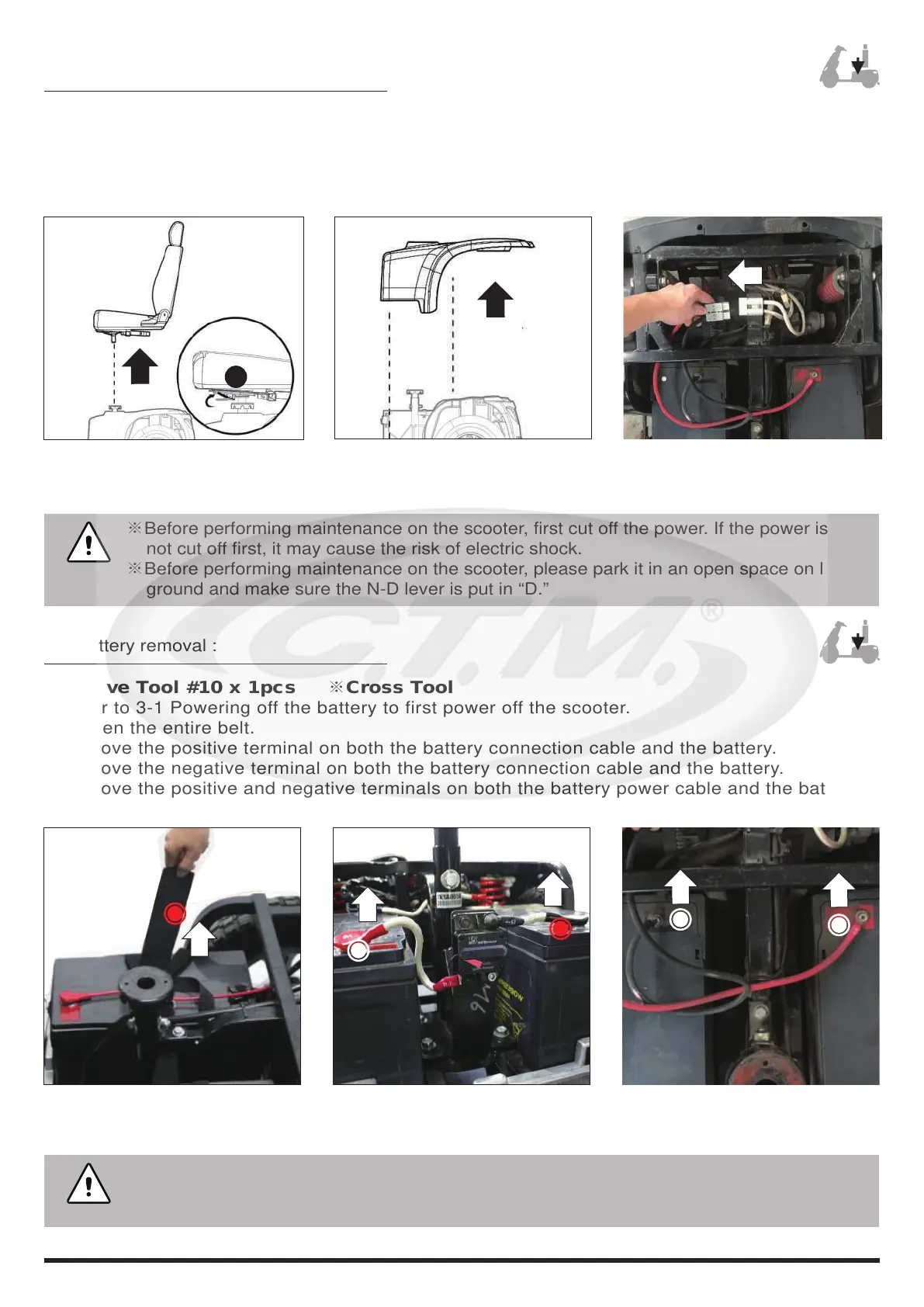

3-1 Powering off the battery :
3-2 Battery removal :
5.Remove the upper cover of
the rear shroud of the scooter.
※Before performing maintenance on the scooter, first cut off the power. If the power is
not cut off first, it may cause the risk of electric shock.
※Before performing maintenance on the scooter, please park it in an open space on level
ground and make sure the N-D lever is put in “D.”
※The battery itself is very heavy. Please be careful not to carry more than you can handle.
※The positive and negative terminals on the battery should not be touched with metal
tools to prevent the risk of danger.
6.Remove the scooter power
connector (1pcs).
※Power cut-off is completed.
※
Please follow the above steps
in reverse for reassembly.
※Sleeve Tool #10 x 1pcs ※Cross Tool
1.Refer to 3-1 Powering off the battery to first power off the scooter.
2.Loosen the entire belt.
3.Remove the positive terminal on both the battery connection cable and the battery.
4.Remove the negative terminal on both the battery connection cable and the battery.
5.Remove the positive and negative terminals on both the battery power cable and the battery.
6.The battery can now be removed.
※Please follow the above steps in reverse for reassembly and replacement.
4.
4.
3.
2.
6.
5.
4.
3.
※No tools required
1.Ensure the scooter’s power is off.
2.Adjust the gearshift of the scooter to “D.”
3.Pull the handle on the left side of the seat.
4.Remove the scooter seat.
