※Before removing the steering, the scooter's upper control wiring can be taken out after
cutting off the strap (x 1pcs).
31

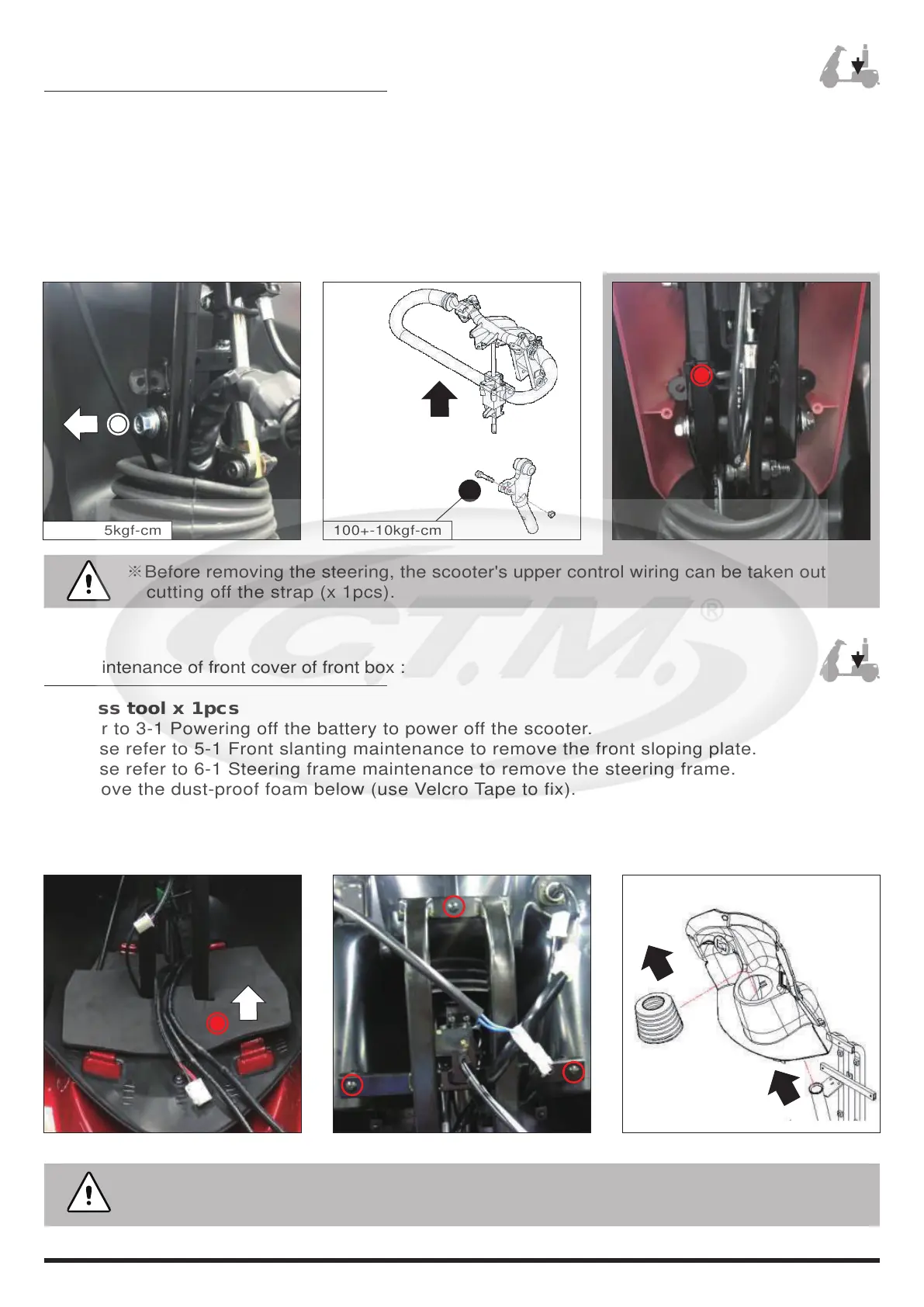

6-1 Steering frame maintenance :
※Hex wrench 8 x 2pcs ※internal hexagonal wrench 4 x 1pcs
※Hex wrench 6 x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 4-6 Head steering cover maintenance to remove the cover.
3.Remove the screw set (M8 x 30Lx 1pcs) on the steering.
4.Remove the screw set (M6 x 30L x 1pcs) that connects the steering to the frame.
5.Remove the entire steering set.
※Please follow the above steps in reverse for reassembly and replacement.
6-2 Maintenance of front cover of front box :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 5-1 Front slanting maintenance to remove the front sloping plate.
3.Please refer to 6-1 Steering frame maintenance to remove the steering frame.
4.Remove the dust-proof foam below (use Velcro Tape to fix).
5.Remove the fixing screws of the front cover and the frame (M4 x 12L x 3pcs).
6.Remove the protective cover
7.The entire box - front cover can now be removed.
4.
250+-25kgf-cm 100+-10kgf-cm
3.
2.
4.
6.
7.
※After the dust-proof foam is removed, please be sure to reassemble it to avoid the
accumulation of dust in the front box, which may affect the scooter’s operation.
