25

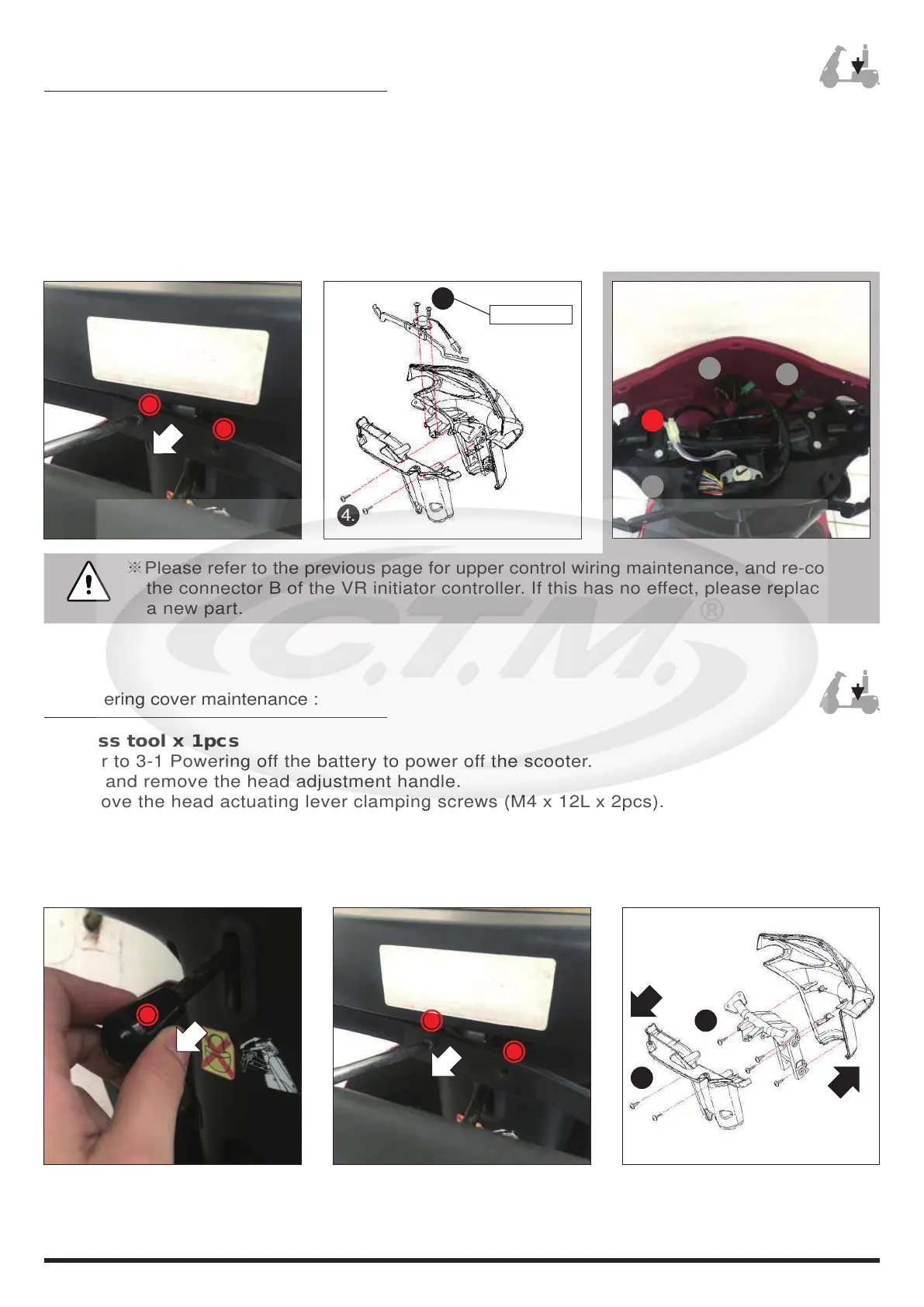

4-5 Maintenance of the VR initiator controller :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Remove the head actuating lever clamping screws (M4 x 12L x 2pcs).
3.Please refer to 4-3 Upper control panel maintenance to open the control panel.
4.Remove the head actuating lever clamping screws (M4 x 12L x 2pcs).
5.Remove the VR initiator controller after removing the fixing screws on the inside of the steering
(M4 x 12L x 2pcs).
※Please follow the above steps in reverse for reassembly and replacement.
4-6 Steering cover maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Turn and remove the head adjustment handle.
3.Remove the head actuating lever clamping screws (M4 x 12L x 2pcs).
4.Remove the steering rear cover clamping screws (M4 x 12L x 2pcs).
5.Remove the steering rear cover.
6.Remove fixing screws of the steering front cover (M4 x 12L x 2pcs).
7.Remove the steering rear cover.
B
A
C
D
5.
4.
6.
4.
※Please refer to the previous page for upper control wiring maintenance, and re-connect
the connector B of the VR initiator controller. If this has no effect, please replace with
a new part.
15kgf-cm
2.
2.
3.
5.
7.
To Next Page
