39

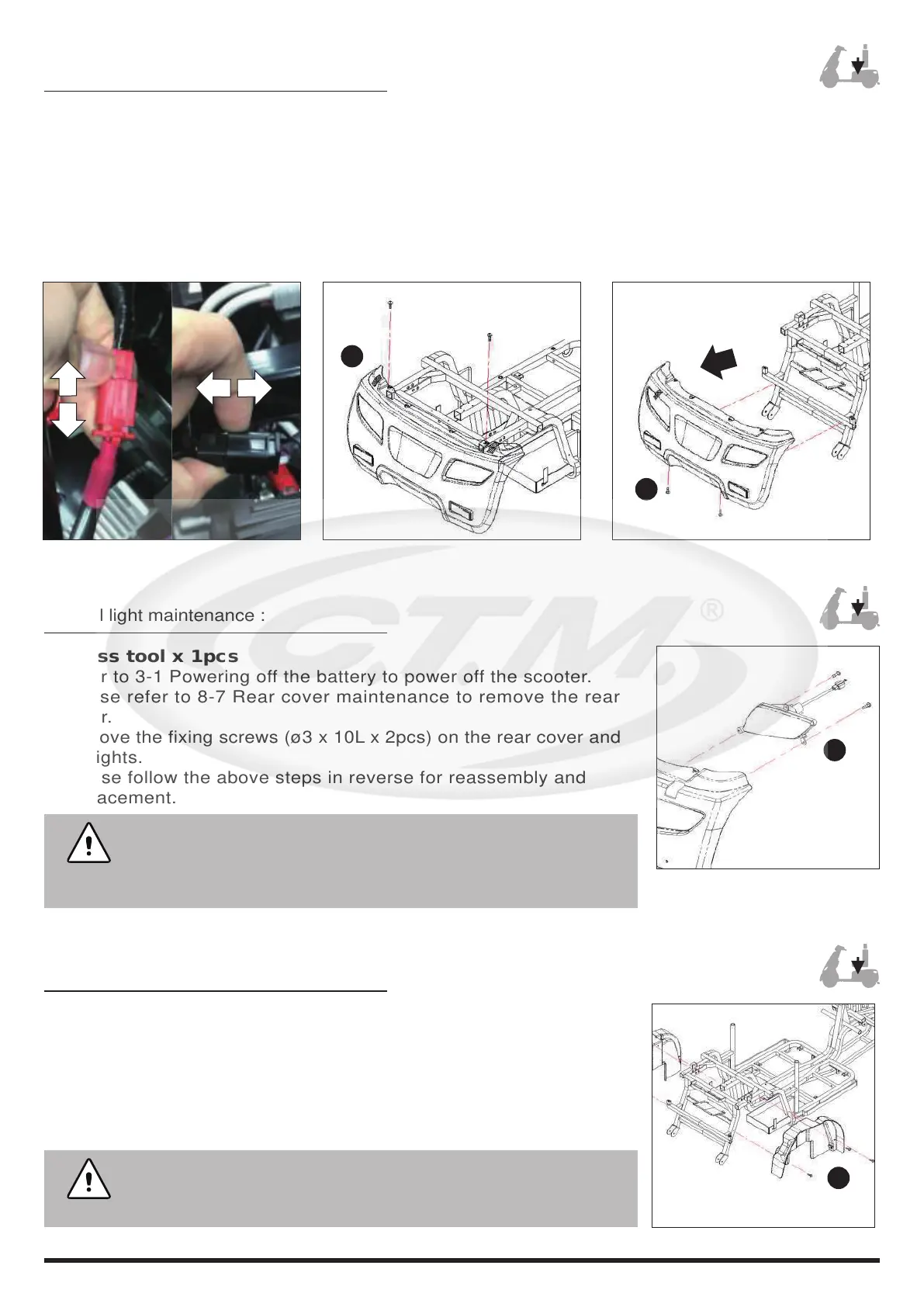

8-7 Rear cover maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Remove the scooter seat and the rear shroud upper cover.
3.Remove the tail light connector (left : black / right : red).
4.Remove the upper locking screw (M4 x12L x 2pcs).
5.Remove the lower locking screw.
6.The rear cover can now be removed.
※Please follow the above steps in reverse for reassembly and replacement.
8-8 Tail light maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 8-7 Rear cover maintenance to remove the rear
cover.
3.Remove the fixing screws (ø3 x 10L x 2pcs) on the rear cover and
tail lights.
※Please follow the above steps in reverse for reassembly and
replacement.
3.
6.
※
If the tail light of the scooter is damaged, it is recommended
to replace it immediately. The tail lights contain the brake
lights and positioning lights. Their malfunctioning may affect
the safety of the user.
3.
8-9 Left / right fender maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Remove the three screws (ø4 x 12L x 3pcs) from the left / right
fender.
※Please follow the above steps in reverse for reassembly and
replacement.
※When repairing the rear fender of the scooter, it is not
necessary to disassemble any parts, since the fender can
be removed and replaced directly from the outside.
2.
4.
5.
