34

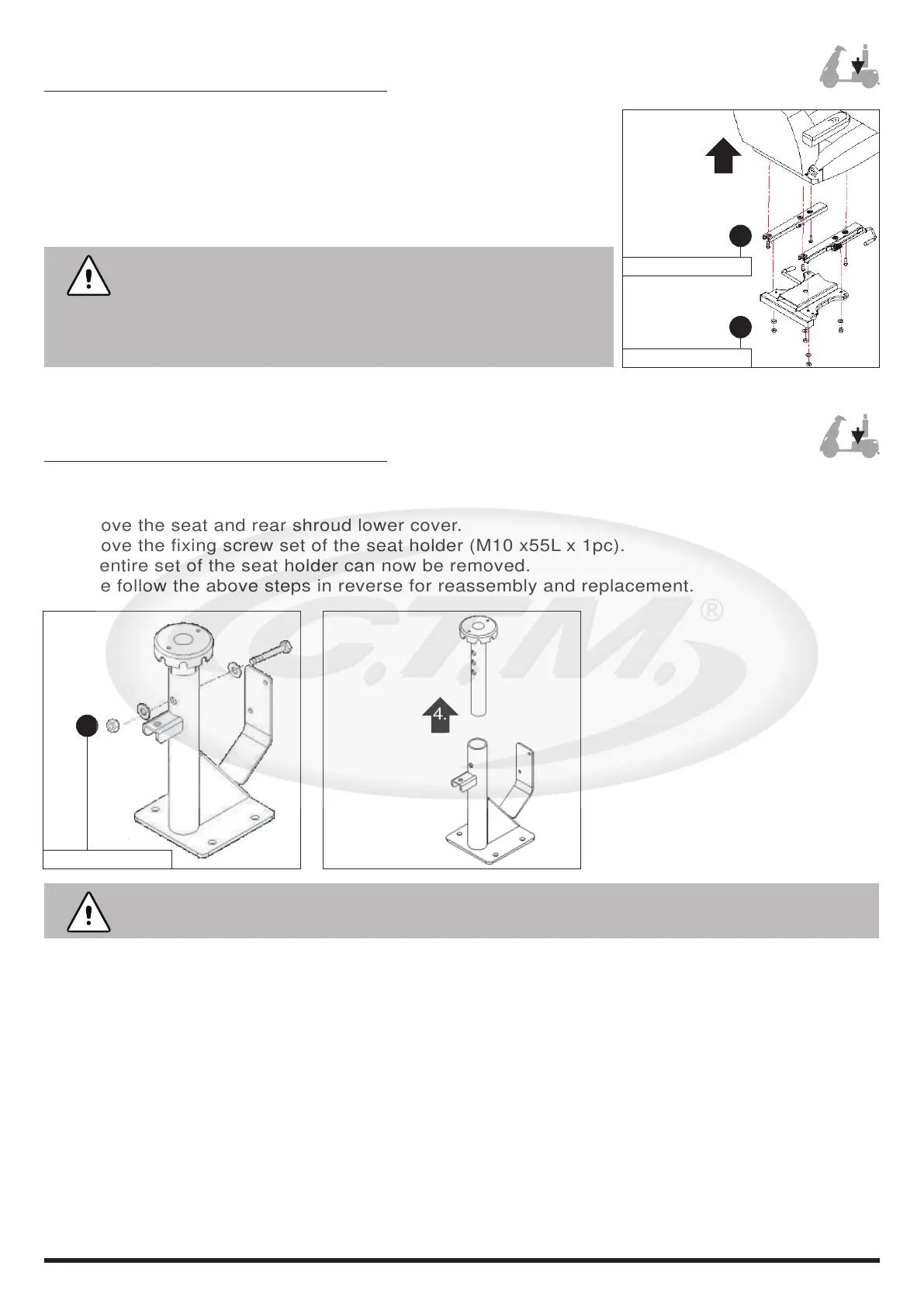

7-1 Seat board maintenance :
※Hex wrench 13 x 2pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please remove the seat first.
3.Remove the seat board locking nut (M8 x 4pcs).
4.Remove the seat rail screws (M8 x15L x 4pcs).
5.The entire seat can now be removed.
7-2 Seat holder adjustment :
※Hex wrench 17 x 2pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Remove the seat and rear shroud lower cover.
3.Remove the fixing screw set of the seat holder (M10 x55L x 1pc).
4.The entire set of the seat holder can now be removed.
*Please follow the above steps in reverse for reassembly and replacement.
4.
3.
5.
※If the seat rail is abnormal or stuck, etc., please replace
with a new seat part immediately.
※If the seat's tipping regulator malfunctions or the leather
is damaged, please replace the entire seat immediately
and follow the above steps in reverse to reassemble the
seat rail / seat board.
130+-13kgf-cm
200+-20kgf-cm
300+-30kgf-cm
4.
4.
※The seat holder is the connection between the frame and the seat board. If it is
damaged, please replace with a new one immediately.
