30

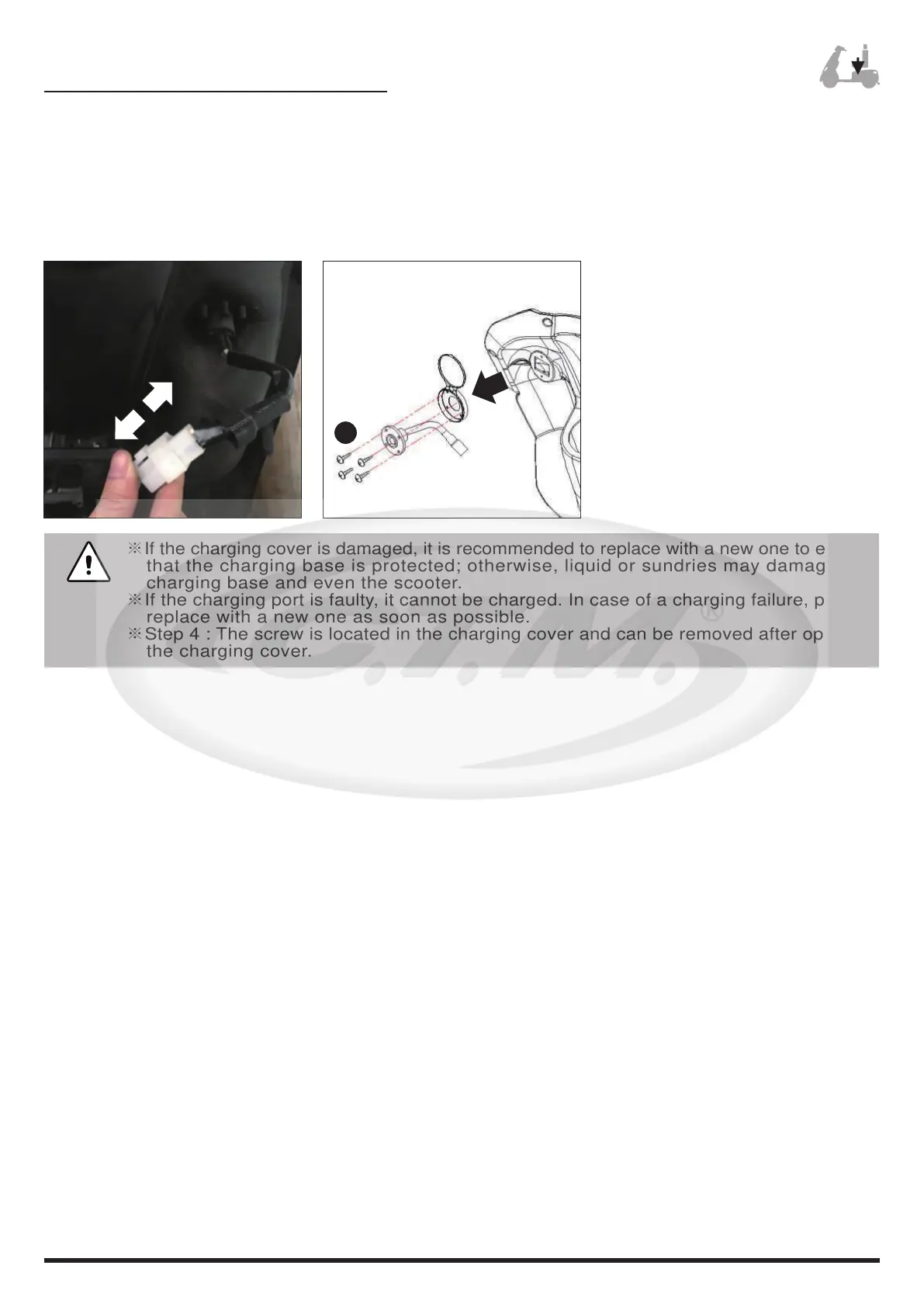

5-8 charging port maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 5-1 Front slanting maintenance to remove the front sloping plate.
3.Remove the charging port connector.
4.Remove the charging port screws from the front box (4 pcs).
5.The entire set of the charging base now can be removed.
※Please follow the above steps in reverse for reassembly/replacement.
3.
※If the charging cover is damaged, it is recommended to replace with a new one to ensure
that the charging base is protected; otherwise, liquid or sundries may damage the
charging base and even the scooter.
※If the charging port is faulty, it cannot be charged. In case of a charging failure, please
replace with a new one as soon as possible.
※Step 4 : The screw is located in the charging cover and can be removed after opening
the charging cover.
5.
4.
