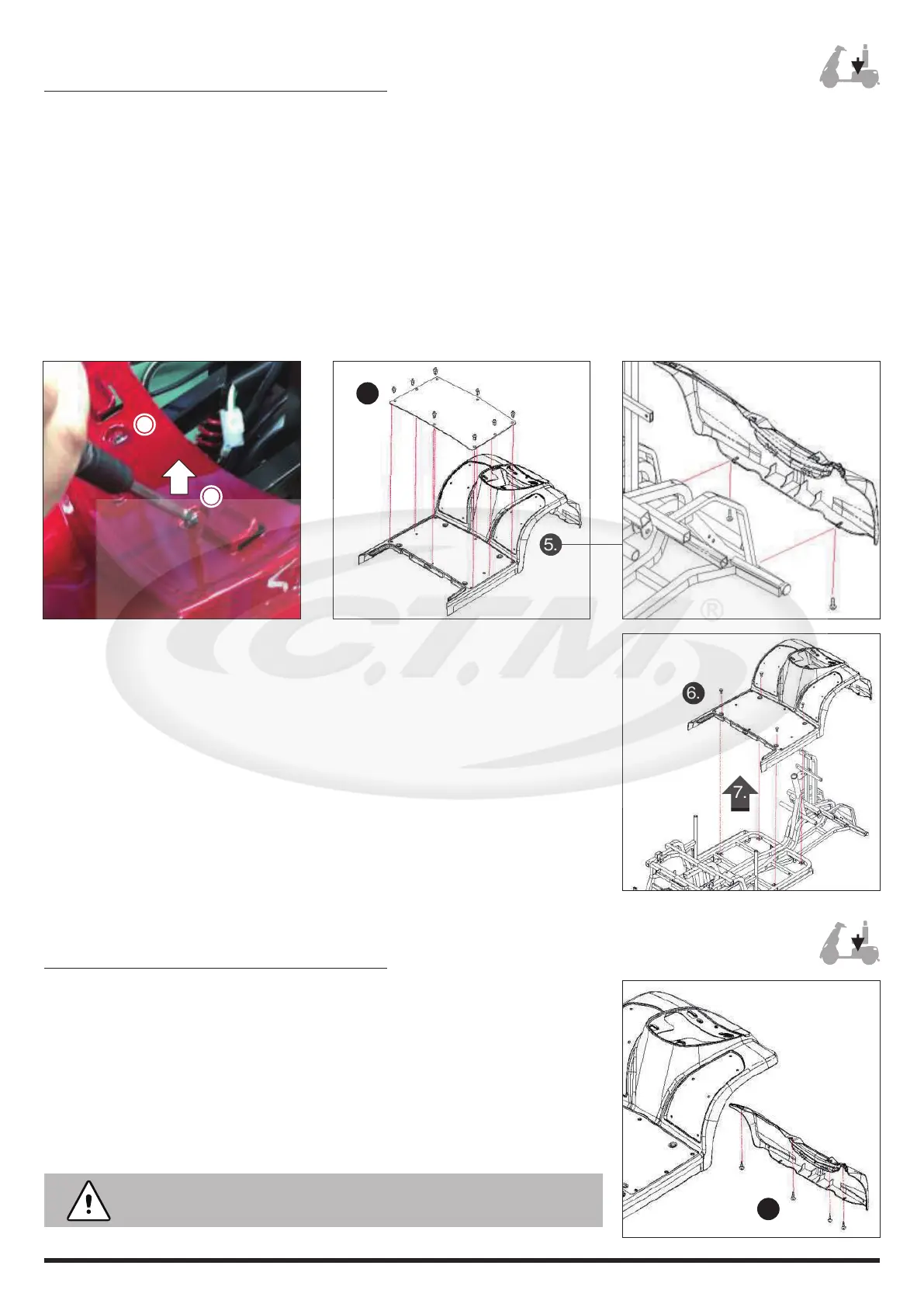

6-3 Front shroud upper cover maintenance :
※Cross tool x 1pcs ※Sleeve tool #10 x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 3-2 Battery removal.
5-1 Front slanting maintenance.
6-1 Steering frame maintenance.
6-2 Maintenance of front cover of front box. to remove the above items.
3.Remove the front shroud upper cover screws (M4 x 12L x 2 pcs)
4.Remove the rivet (x8pcs) from the pedal.
5.Remove the lower cover screws (M4 x12L x2pcs).
6.Remove the pedal screws (M6 x 16L x 4pcs).
7.The entire front shroud upper cover can now be removed.
※Please follow the above steps in reverse for reassembly and replacement.
6-4 Front cover maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 6-3 Front shroud upper cover maintenance to
remove the front shroud upper cover.
3.Remove the screws from the front cover (M4 x 12L x 4pcs).
※Please follow these steps in reverse for reassembly and
replacemen.
3.
7.
※The front cover can be removed directly from the
scooter without removing other items.
4.
5.
6.
3.
To Next Page
