※When reassembling the electromagnetic brake, please pay attention to the position of
the gear lever.
※
The electromagnetic brakes shall be cleaned regularly. After removing the electromagnetic
brake, remove the three hexagon socket screws (pictured below) on the electromagnetic
brake. After removing the brake pad, clean the brake pad with a brush (do not mix with
detergent, just clean with a dry brush).
※
When disassembling the motor, the motor and the differential mechanism can be removed
without removing the rear wheel/rear frame.
※When disassembling the motor, it is recommended that two people work together. One
person should remove the screw, while the other holds the motor to prevent the motor
from falling after the screw has been loosened.
※The abnormal sound of the scooter motor while running may be related to the motor /
differential mechanism. Please check that first.
40

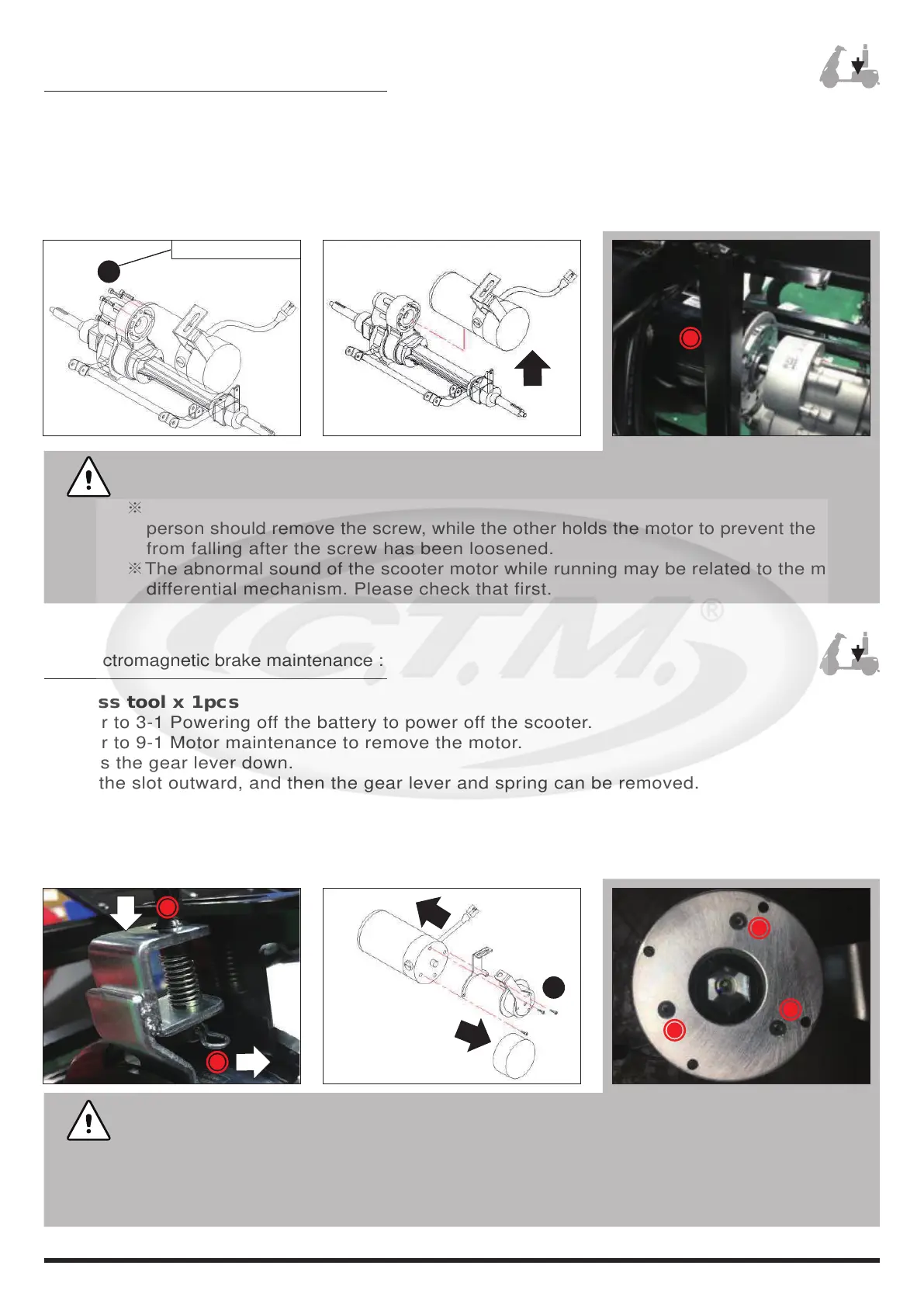

9-1 Motor maintenance :
9-2 Electromagnetic brake maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Refer to 9-1 Motor maintenance to remove the motor.
3.Press the gear lever down.
4.Pull the slot outward, and then the gear lever and spring can be removed.
5.Remove the electromagnetic brake protection cover.
6.Remove the electromagnetic brake screws (ø3 x 15L x 3pcs).
7.Remove the electromagnetic brake.
※Please follow the above steps in reverse for reassembly and replacement.
4.
4.
300+-30kgf-cm
3.
4.
7.
5.
4.
※#5 Allen wrench x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Refer to 7-3 Controller maintenance to unplug the motor power line.
3.Remove the motor fixing screws (M6 x 50L x 4pcs).
4.The motor can now be removed.
※Please refer back in reverse for reassembly and replacement.
4.
300+-30kgf-cm
