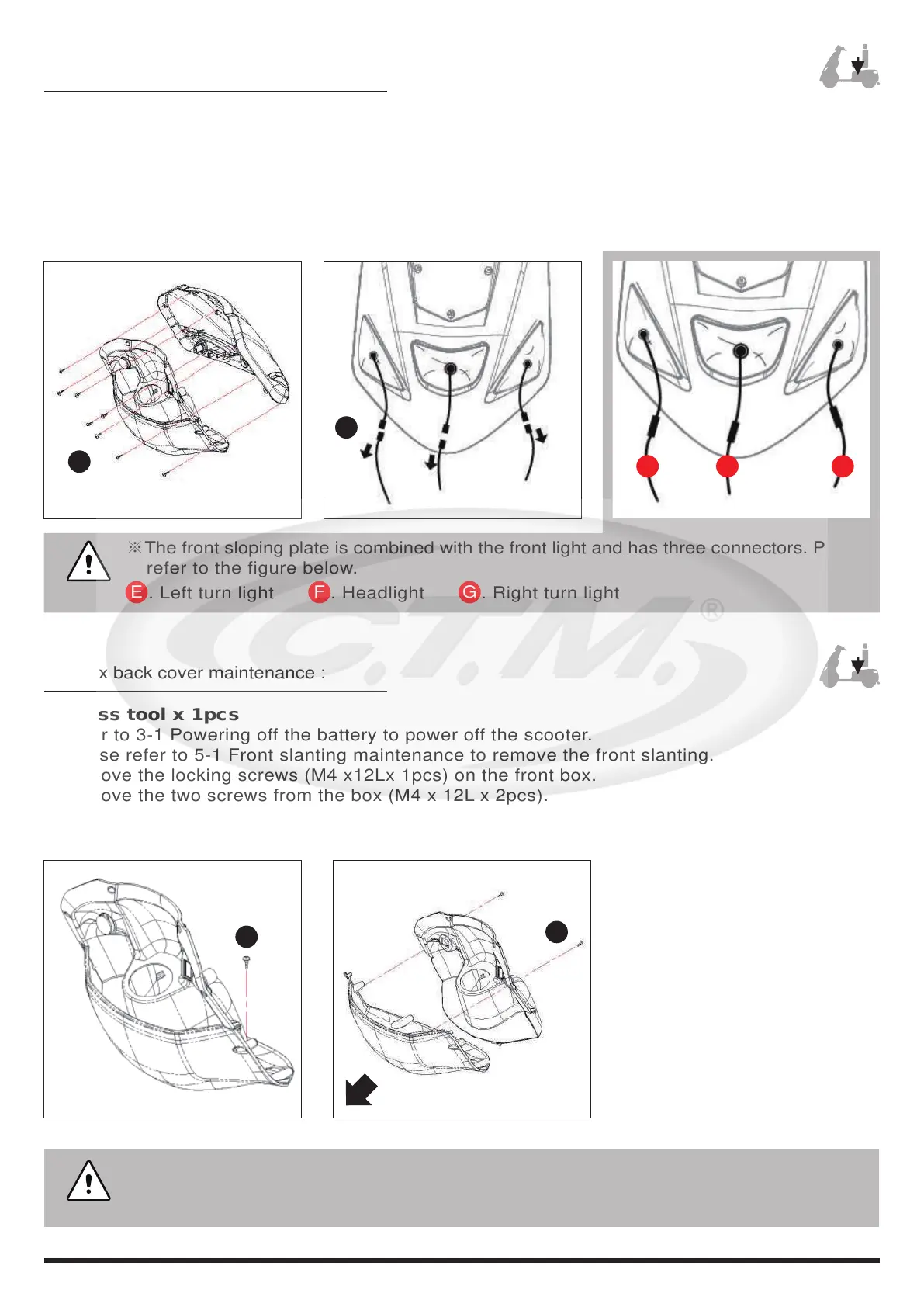

※The front sloping plate is combined with the front light and has three connectors. Please
refer to the figure below.
. Left turn light . Headlight . Right turn light
26
5-1 Front slanting maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 4-6 Steering cover maintenance to remove the cover.
3.Remove the screws around the front box (M4 x 12L x 8pcs).
4.Remove the front slanting connector (3pcs).
※The front slanting can be removed once the connector is removed.
※Please follow these steps in reverse for reassembly and replacement.
5-2 Box back cover maintenance :
※Cross tool x 1pcs
1.Refer to 3-1 Powering off the battery to power off the scooter.
2.Please refer to 5-1 Front slanting maintenance to remove the front slanting.
3.Remove the locking screws (M4 x12Lx 1pcs) on the front box.
4.Remove the two screws from the box (M4 x 12L x 2pcs).
5.Separate the rear box.
※Please follow these steps in reverse for reassembly and replacement.
E F G
E F G
3.
3.
4.
4.
※In this step, only the back cover of the box can be removed. If the front cover of the
box needs to be removed, please refer to 6-2 Maintenance of front cover of front box.
※Please take out any articles in the box before disassembling to prevent falling and loss.
5.
