4 Conguration

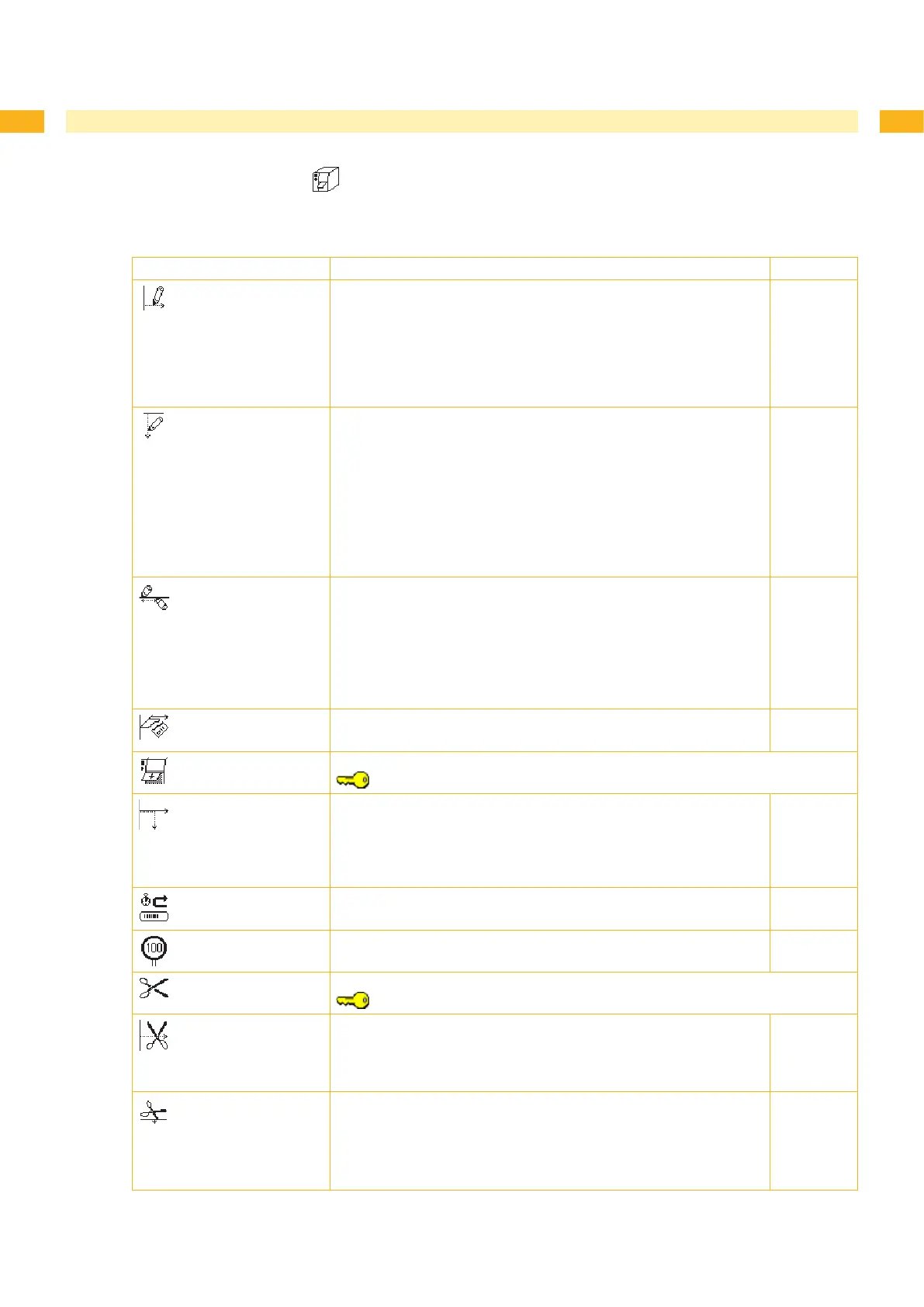

4.1.2 Machine Parameters
Press the menu button.
Select Setup > Machine param..
Parameter Meaning Default
Printhead pos. X
Shifting of the entire print image perpendicular to the direction of
paper ow.
The absolute shifting is limited by the margins of the print zone.
Those are determined by the width of the printing line on the
printhead. The Printhead pos. X can also be set via software.
The offset values from the Machine param. menu and the
software are added together.
0,0 mm
Printhead pos. Y
Shifting of the entire print image in the direction of paper ow. With
positive values, printing begins later in the direction of paper ow.
Shifting of the print image in the direction of paper ow also inu-
ences the peel and cutting positions.
Correct the Peel position and Cut position parameters
by the same value in the opposite direction.
The Printhead pos. Y can also be set via software. The offset
values from the Machine param. menu and the software are
added together.

0,0 mm
Offset upper-
lower head
at XD only
Shift the print image of the upper printhead in the direction of the
media.
With positive values, printing begins later in the direction of the
media. The Offset upper-lower head can also be set via
software. The offset values from the Machine param. menu and
the software are added together.
0,0 mm
Tear-off pos.
Shifting of the tear-off position in the direction of paper ow. With
positive values, the label strip is transported farther out of the printer.
0,0 mm
Demand sensor
Conguration of the peel-off parameters for devices with peel-off function.
If peel-off module is not installed, access only with service key inserted
> Peel position
Shift the position of the dispensed label relative to the dispensing
edge.
The Peel position can also be set via software. The offset values
from the Machine param. menu and the software are added
together.
0,0 mm
> Backfeed delay
Delay time between removing the label from the peel position and
the backfeed of the label.
250 ms
> Limit peel-off
spd.
Limitation of the print speed in the peel-off mode to 100 mm/s.
On
Cutter
Conguration of the cut parameters for devices with cutter.
If cutter is not installed, access only with service key inserted
> Cut position
Offset of the cut position relative to the rear label edge.
The Cut position can also be set via software. The offset values
from the Machine param. menu and the software are added
together.
0,0 mm
> Cut depth
with perforation cutter only
Setting of the perforation depth.
The Peel position can also be set via software. The offset values
from the Machine param. menu and the software are added
together.
0


