4 Conguration
4.1.4 Interfaces
Press the menu button.
Select Setup > Interfaces.

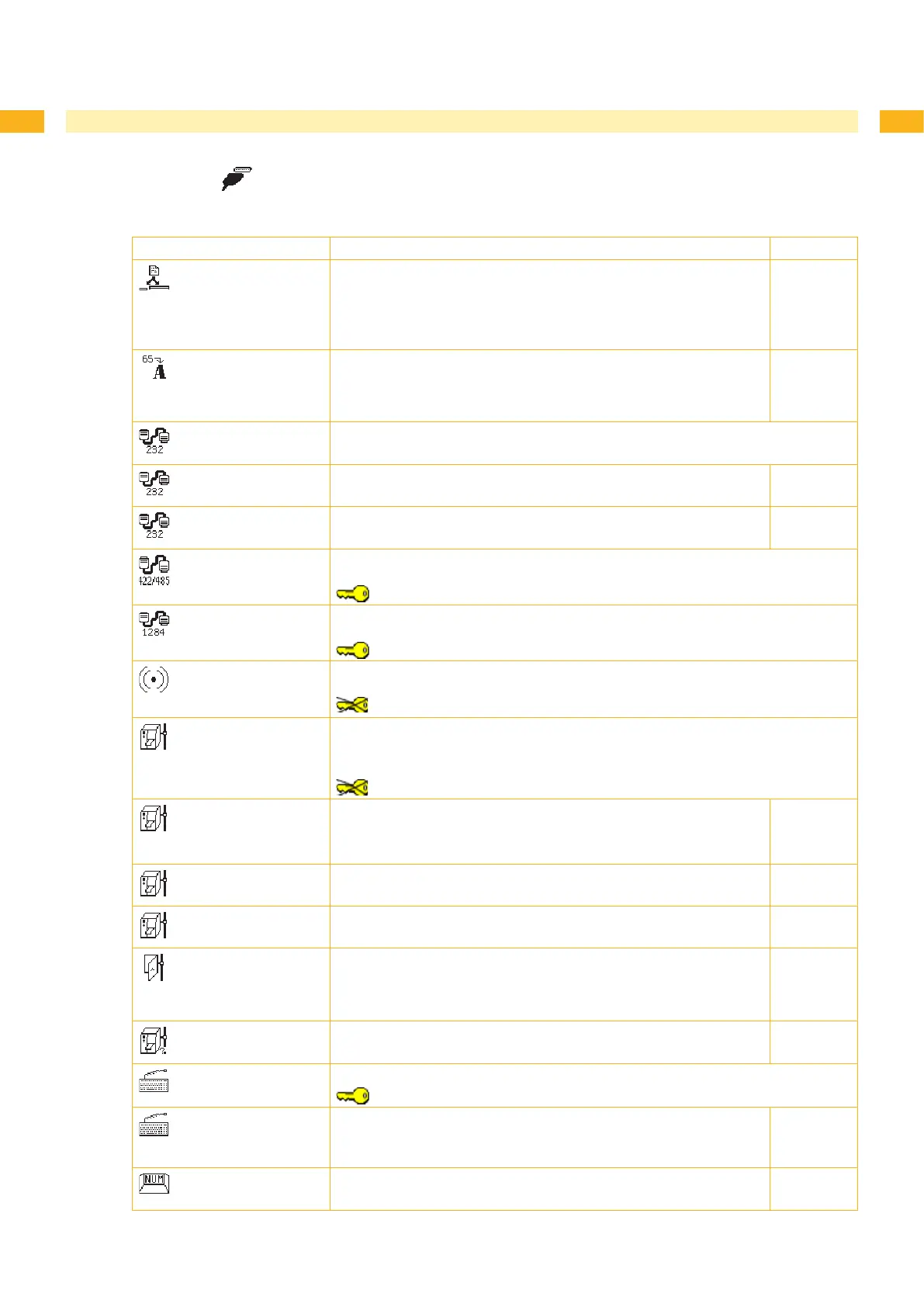

Parameter Meaning Default
Default card
slot
Denition of the default card slot.
CompactFlash or PC-Card : card slots on the back of the printer,
Ext. CompactFlash: card slot in the external operating panel,
USB Memory: USB ash drive at USB master interface,
IFFS: Internal Flash File System
Compact-
Flash
Character set
Selection of the character set table for adaptation to the computer
system used. Switching the character set via software is not
possible. Characters not available in the selected character set can
be accessed using the Unicode table.
Windows
1252
RS-232
Interface parameters for data transfer via the serial RS-232 interface.
> Baud rate
Speed (in Baud) of data transfer
57.600
> Handshake
Data transfer protocol
RTS/CTS
RS-422/485
Conguration of the optional serial RS-422 or RS-485 interface.
 Operating instructions of the interface.
If interface is not installed, access only with service key inserted
IEEE 1284
Conguration of the optional Parallel/Centronics interface.
 Operating instructions of the interface.
If interface is not installed, access only with service key inserted
Wireless LAN
802.11
Conguration of the optional WLAN card
 Operating instructions of the interface.
If interface is not installed, no access to the WLAN parameters
Ethernet
Conguration parameters of the Ethernet interface card
Additional conguration parameters for the Ethernet interface can be accessed via
the printer website ( ”Setup tab” on page 24.)
With WLAN card installed no access to the wired Ethernet interface !
> DHCP
Method of issuing IP address
On: Dynamic issuing of IP address by the DHCP server
Off: Direct issuing of the IP address by the operator
On
> IP
IP address of the label printer. Only valid with DHCP = Off.
-
> Mask
Subnet mask (classication and address range) of the local network.
Only valid with DHCP = Off.
-
> Gateway
Connection address between the local network and other networks.
The IP address of the computer (router) on the network through
which the connection can be established is used for this. The
address of the router can also be issued via DHCP.
Off
> Network error
Printer switches to Error mode when problems with the network
connection occur.
Off
Keyboard
Setting of the keyboard layout when using an external keyboard.
If keyboard is not connected, access only with service key inserted!
> Layout
Country setting of the keyboard layout.
With the Automatic setting, the setting from the menu Local
settings > Country is used..
Automatic
> NumLock
Activation or deactivation of the numerical keypad on the keyboard.
On
8 Parameters of the menu Setup > InterfacesTable


