10.4 SIDE PANEL ASSEMBLY

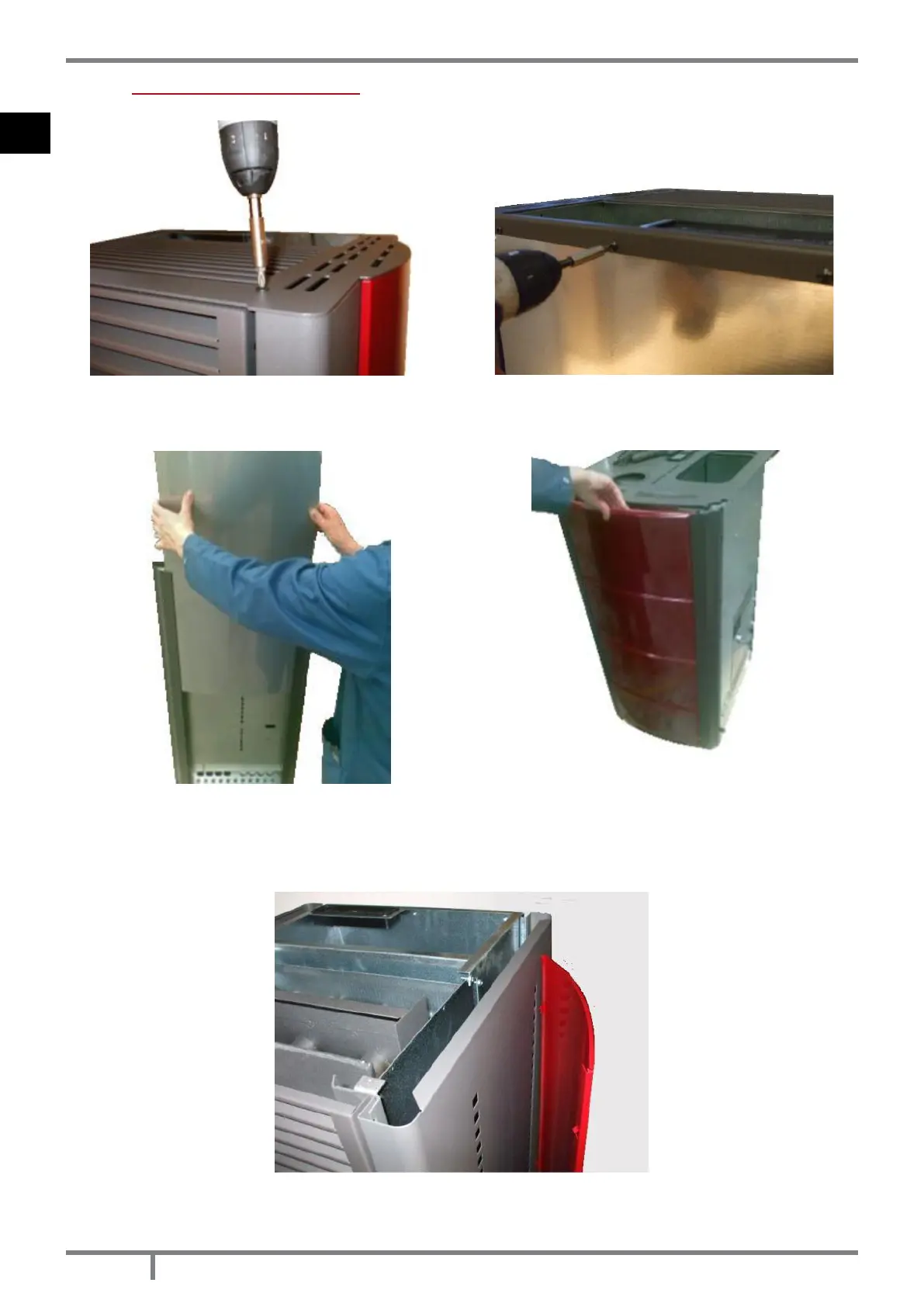

Fig. 13 - Upper screws removal Fig. 14 - Backward screws removal
• Remove the top cover: unscrew the 2 upper screws and the 3 backward screws (see Fig. 13 page 14 and
Fig. 14 page 14).
Fig. 15 - Side panel insertion Fig. 16 - Ceramic panel insertion
• Insert from on high the metal side panels on the appropriate guides getting it slightly course all the way (see
Fig. 15 page 14).
• Insert from on high the ceramic side panels on the appropriate guides getting it slightly course all the way
(see Fig. 16 page 14).
Fig. 17 - Coloured side panel insertion
• The narrow side panel is to clasp on the squared holes (see Fig. 17 page 14).
• Recompose all.
