8.6 CHIMNEY POT

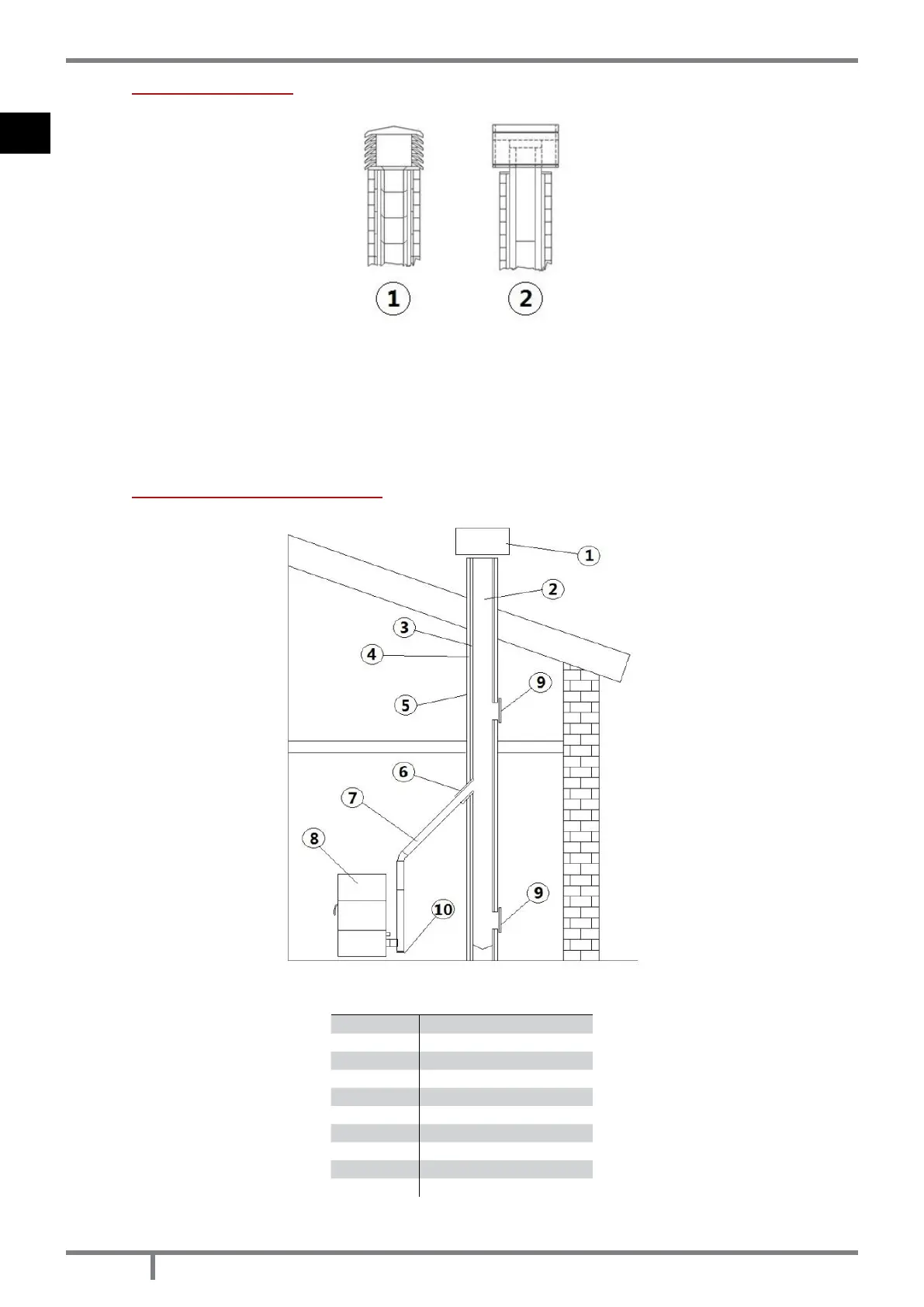

Fig. 4 - Anti-wind chimney pots
The chimney pot is important for the correct running of the heating appliance:
• We recommend using an anti-wind chimney pot, see Fig. 4 page 8.
• The hole width for fumes exhaust must be the double of the chimney ue width and tted in a way that the
fume exhaust is assured also in case of wind.
• It should prevent the inltration of rain, snow and animals.
• The outlet height in the atmosphere must be away from the reux area caused by the roof structure or by
obstacles laying nearby (see Fig. 2 page 6).
8.7 CHIMNEY COMPONENTS
Fig. 5 - Chimney components
LEGEND Fig. 5 page 8
1 Chimney pot
2 Fume outlet
3 Chimney ue
4 Termal insulation
5 External wall
6 Chimney union
7 Fume pipe
8 Heat generator
9 Inspection door
10 T-union with inspection plug
