RIGHT TRIANGLE FuNCTIONS
With the Machinist Calc Pro, you can easily solve Right Triangle
problems by simply entering two of four variables: Adjacent,
Opposite, Hypotenuse or Angle.
Right Triangle – Based on Adjacent and Opposite Legs

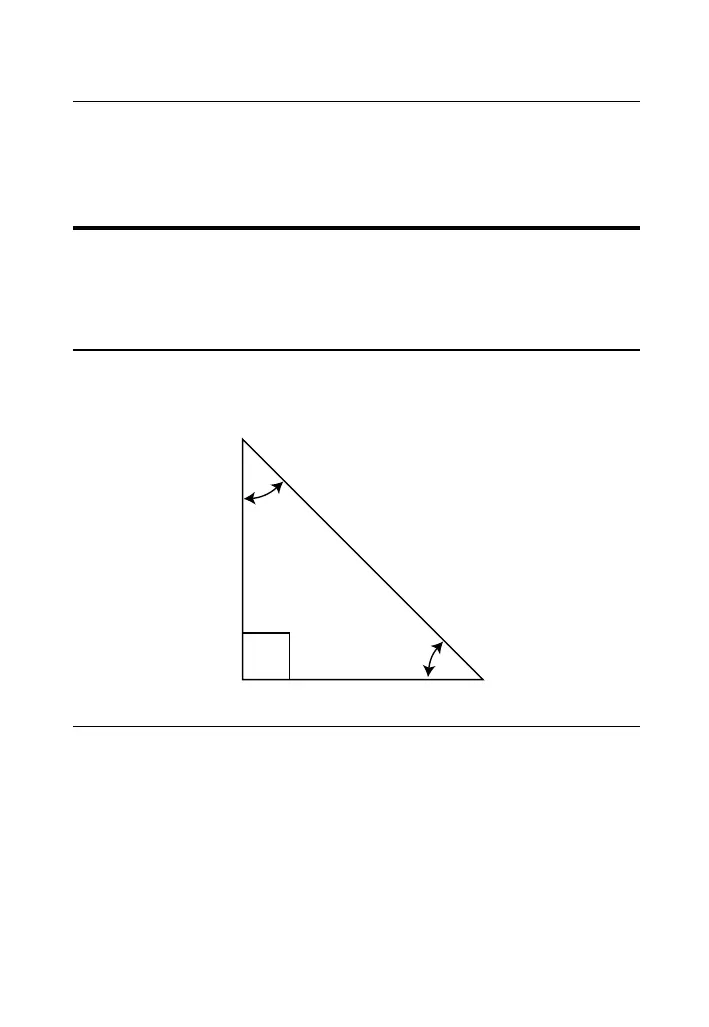

Calculate the Hypotenuse, Angle and Adjacent Angle of a right
triangle with an Adjacent Leg of 75 mm and an Opposite Leg of
100 mm:
Opposite
Leg: 100 mm
Hypotenuse
A
B
Adjacent
Leg: 75 mm
KEYSTROKE DISPLAY
OO
0.
1. Enter the Adjacent Leg length:
75ma
ADJ $ 75. MM
2. Enter the Opposite Leg length:
100mp
OPP $ 100. MM
3. Solve for the Hypotenuse:
h
HYP 125.0000 MM
(cont’d)
KEYSTROKE DISPLAY
