Chapter 3: Configuration Guide
Configuring a Link Using the Quick Configuration
Wizard
phn-3963_004v000
Page 3-12

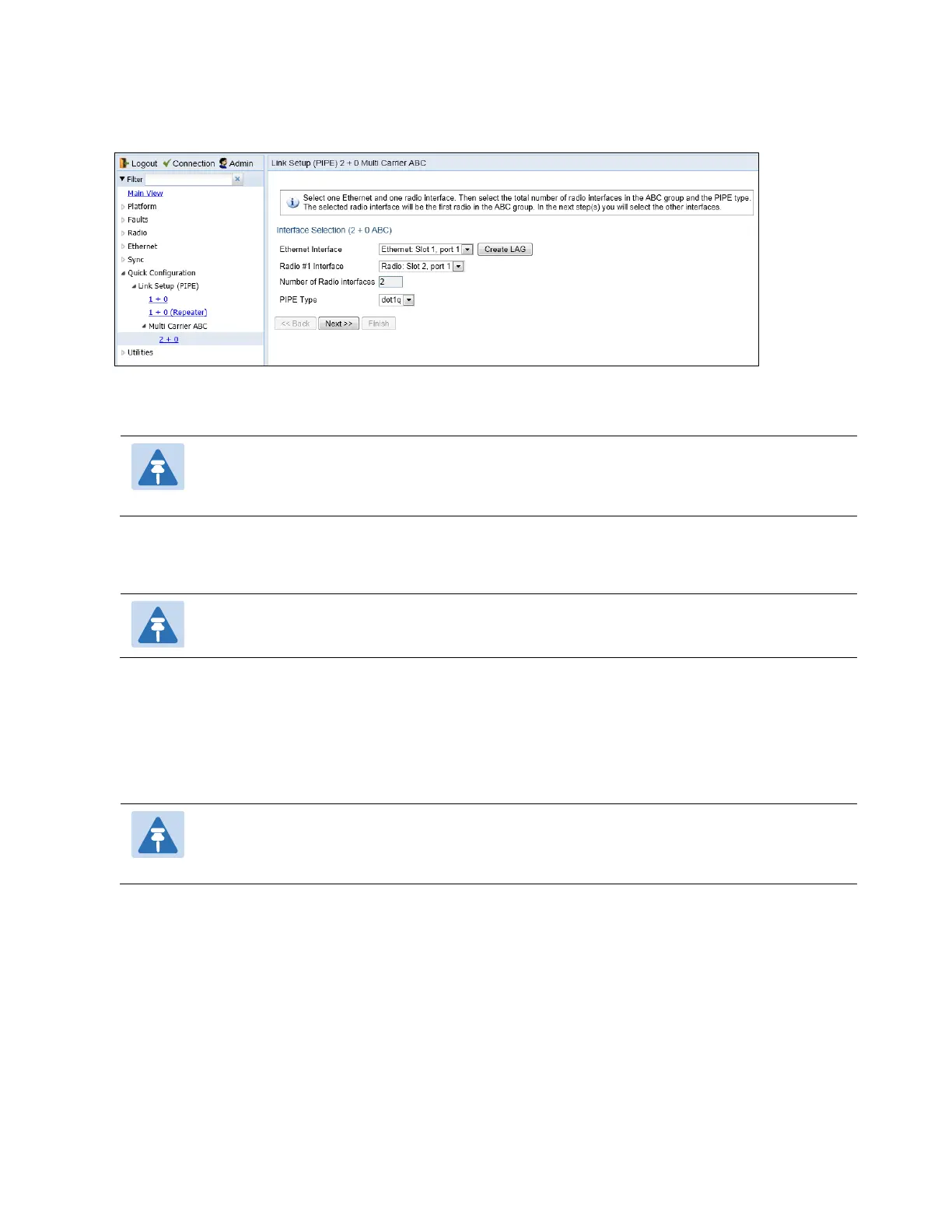

Figure 36 2 + 0 Multi Carrier ABC Quick Configuration Wizard – Page 1
2 In the Ethernet Interface field, select an Ethernet interface or a LAG for the group.
To create a LAG, click Create LAG. The Create LAG Group page opens. For instructions
on creating LAG groups, see Configuring Link Aggregation (LAG).
3 In the Radio #1 Interface field, select the first radio interface for the group.
The Number of Radio Interfaces field is read-only.
4 In the Pipe Type field, select the Attached Interface type for the service that will connect the
radio and Ethernet interfaces. Options are:
o s-tag – A single S-VLAN is classified into the service points.
o dot1q - A single C-VLAN is classified into the service points.
For a full explanation of Ethernet Services, service types, and attached interface types,
see Configuring Ethernet Service(s).
5 Click Next. The Radio #2 Selection page opens.
To Next Page
