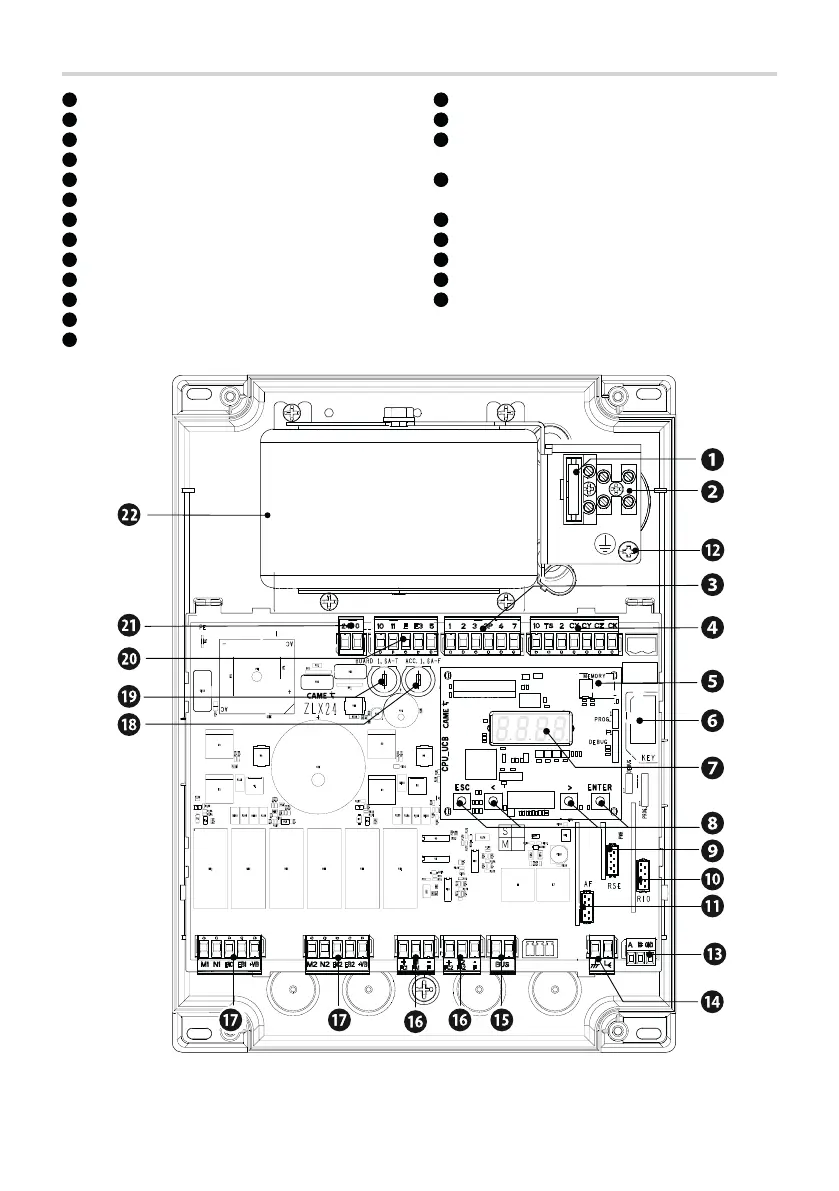

Description of parts
1
Line fuse
2
Power supply terminal board
3
Terminal board for connecting control devices
4
Terminal board for connecting the safety devices
5
Memory Roll card connector
6
Connector for CAME KEY
7
Display
8
Programming buttons
9
RSE card connector
10
RIO CONN card connector
11
Connector for plug-in radio frequency card (AF)
12
Earthing star point
13
Terminal board for CRP connection
14
Terminal board for connecting the antenna
15
Terminal board for BUS devices
16
Terminal boards for connecting micro limit switches and/
or encoders
17
Terminal board for connecting the gearmotor with
encoder or with slowdown switch and electric lock
18
Accessories fuse
19
Control board fuse
20
Terminal board for connecting the signalling devices
21
Terminal board for power supply to the control board
22
Transformer
