Page 18 - Manual FA01554-EN - 01/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
Devices with BUS CXN system
The CXN CAME system is a two-wire non-polarised communication BUS which allows you to connect up all compatible CAME
devices.
Connection to the BUS can be in a chain, star or mixed formation.
Once the system has been wired, and after having set the address on each device, the function of each accessory can be
confi gured on the control panel. This method allows you to confi gure the set-up immediately without having to do so later and
intervene directly on the accessories and system wiring.

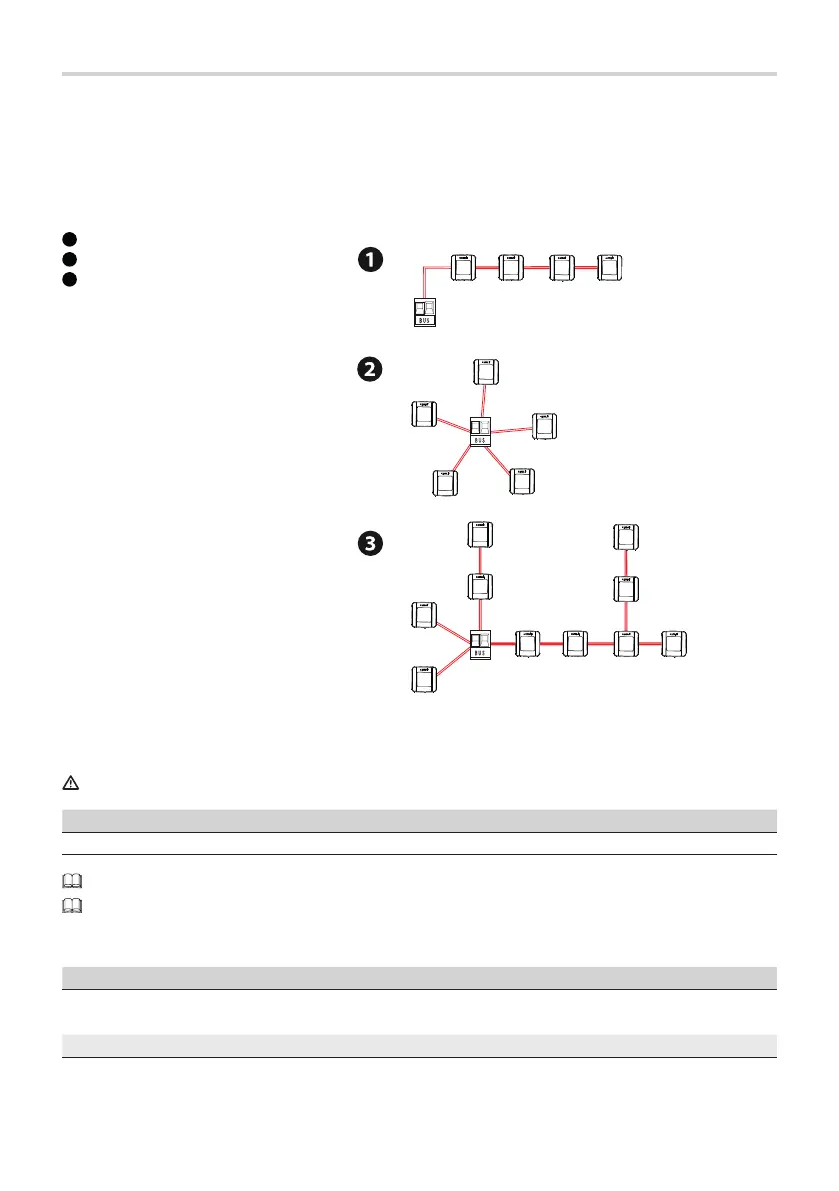

Cabling
1
Chain connection
2
Star connection
3
Mixed connection
Cable type
We recommend using a FROR 2 x 0.5 mm cable, maximum 50 m in length from the control board.
Single branch length (m) max. 50 m
BUS cable 2 x 0.5 mm²
The total length of all branches can be a maximum of 150 m.
The cable cannot be shielded.
Maximum number of devices that can be connected, by type
Type of device Maximum number of devices
Keypad selectors and transponders 7
Photocell pairs 8
Flashing beacons 2
