- Manual
FA01554-EN
- 01/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - T
ranslation of the original instructions

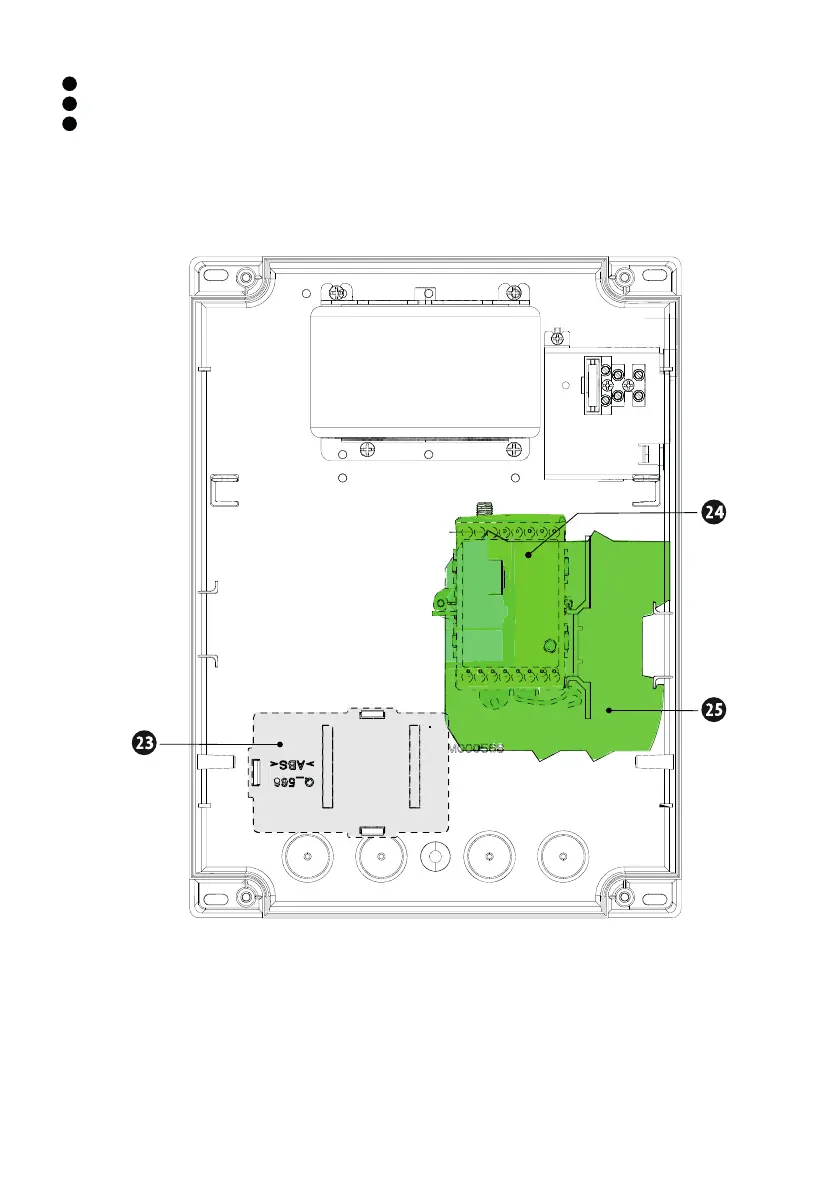

Optional accessories
23
RLB battery charger board (002RLB)
24
RGSM001 module (806SA-0010)
25
SMA module (009SMA)
6
8
Table of Contents
Safety Instructions
2
Dismantling and Disposal
3
Product Data and Information
5
Specifications
5
Description of Parts
6
Optional Accessories
7
Size
8
Cable Types and Minimum Thicknesses
8
BUS Cable Table
8
Installation
9
Preparing the Control Panel
9
Fastening the Control Panel
10
Electrical Connections
11
Preparing the Electrical Cables
11
Power Supply
12
Connecting to the Mains
12
Power Supply Output for Accessories
12
Connection to One or Two Electric Locks 12 V AC/DC - Max 15 W
12
Maximum Capacity of Contacts
13
Gearmotors
13
Gearmotor with Encoder
14
Gearmotors with Slowdown Switches
16
Gearmotors Without Encoder
17
Devices with BUS CXN System
18
Cabling
18
Cable Type
18
Maximum Number of Devices that Can be Connected, by Type
18
Command and Control Devices
19
Antenna with RG58 Cable
19
Signalling Devices
20
Operator Status Warning Light
20
Safety Devices
21
Programming Button Functions
23
Getting Started
23
Diagrams Showing Leaf Speed, Slowdown and Approach Points
24
Using Slowdown Space
24
Virtual Encoder
25
Functions Menu
25
Total Stop
25
CX Input
26
CY Input
26
Safety Devices Test
27
Hold-To-Run
27
Gate-Open Warning Light
27
Encoder
27
Thrust
28
Electric Lock
28
Additional Light
28
Automatic Closure
28
Removing Obstacles
33
New User
33
Remove User
33
Remove All
33
Motor Test
34
Radio Decoding
34
Self-Learning Rolling
34
Travel Calibration
34
Forgotten Password
35
Saving and Uploading User and Configuration Data
36
Photocell BUS
36
Error Messages
37
Final Operations
