Maximum capacity of contacts
Device Output Power supply (V) Power (W)
Accessories 10 - 11 24 AC/DC 20
Additional light 10 - E3 24 AC/DC 10
Flashing beacon 10 - E 24 AC/DC 10
Operator status warning
light
10 - 5 24 AC/DC 3
BUS BUS 15 DC 15
Do not connect anything other than CAME BUS accessories.

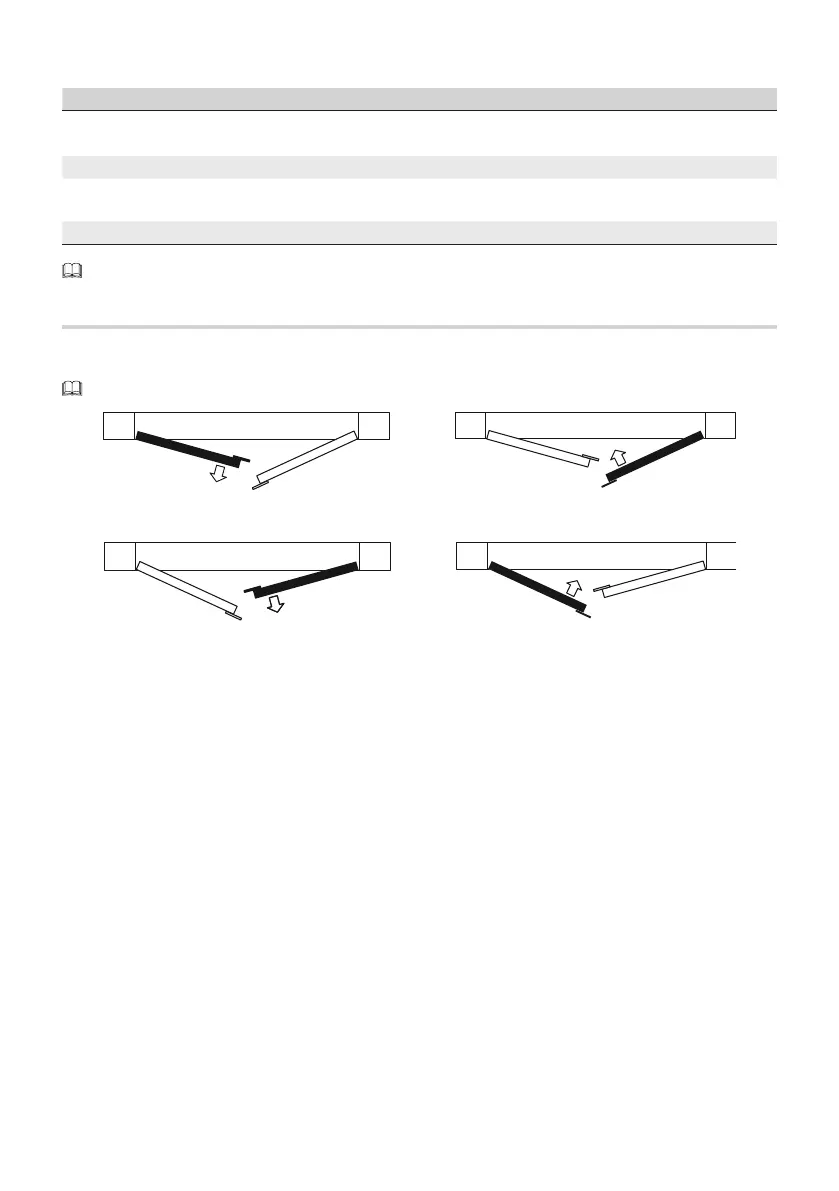

Gearmotors
M1 =Gearmotor delayed while opening
M2 =Gearmotor delayed while closing
Where there is only one gearmotor in the system, make the electrical connections on the gearmotor (M2).
M1
M2
M2M1
